Doepfer - LFO II Variable Waveform Gen.
Sale Price: $119
Buy From Store
Pick up at the store only. Contact Victoria British Columbia
This product may not come in original packaging.
Description

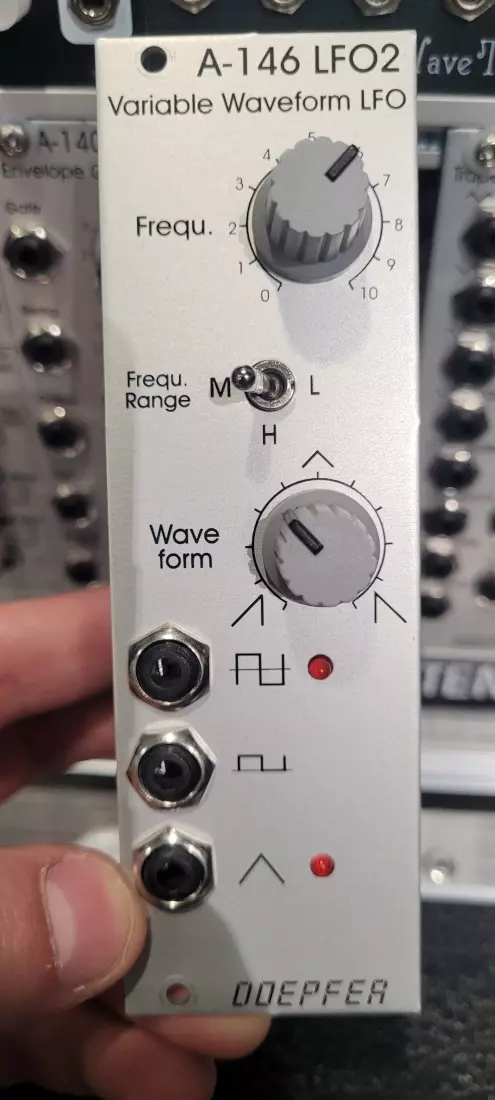

Module A-146 (LFO 2) is a Low Frequency Oscillator, which produces periodic control voltages over a wide range of frequencies.
The LFO can be used as a modulation source for a series of modules (for instance pulse width and/or frequency modulation of a VCO, modulation of a VCF cut-off frequency, amplitude modulation with a VCA).
Three outputs are available, with different waveforms: sawtooth / triangle; square wave, and positive-voltage square wave.
The waveform is continuously adjustable from rising sawtooth, through triangle to falling sawtooth. The same control affects the pulse width of the square wave.
A three-way switch can select one of three frequency ranges, spanning from one cycle every few minutes, at the lowest, up to audio frequency at the highest.
The output levels are about +/-2.5V (i.e. about 5Vpp) for triangle and the symmetrical rectangle.
