Gear Hunter

Fender - 11-9002-770

Description

Tone. Tradition. Innovation. Fender's new American Deluxe Stratocaster has all the modern features today's guitarists demand. A compound radius fretboard allows exhilaratingly effortless string bending anywhere along the neck and new, N3 noiseless pickups supercharge your sound with improved Stratocaster tones for sparkling, bell-like chime with no hum. Reconfigured S-1 switching offers even more knockout tonal options. Other features include staggered locking tuners, two-point, synchronized, American Deluxe tremolo bridge with pop-in arm and beveled neck heel.

Instrument Type: Stratocaster
Model Name: American Deluxe Stratocaster
Model Number: 011-9000-(Color #) and 011-9002-(Color #)
Series: American Deluxe Series
Colors: (700) 3-Color Sunburst, (720) Amber, (723) Olympic Pearl, (759) Tungsten, (770) Sunset Metallic,
Urethane Finish
Body: Select Alder
Neck: Maple, Modern C Shape, (Satin Urethane Finish)
Fingerboard: Rosewood (P/N 011-9000) or Maple (P/N 011-9002), 9.5 to 14 Compound Radius (241 mm to 355.6 mm)
No. of Frets: 22 Medium Jumbo Frets
Pickups: 3 New, Noiseless N3 Strat Pickups (Neck/Middle/Bridge)
Controls: Master Volume (with S-1 Switch),
Tone 1. (Neck Pickup),
Tone 2. No-Load Tone Control (Middle and Bridge Pickups)
Pickup Switching: 5-Position Blade and 2-Position

Push/Push S-1:
S-1 Switch Up (Off):
Position 1. Bridge Pickup
Position 2. Bridge and Middle Pickup in Parallel
Position 3. Middle Pickup
Position 4. Middle and Neck Pickup in Parallel
Position 5. Neck Pickup

S-1 Switch Down (On):
Position 1. Bridge, Middle and Neck Pickups in Series
Position 2. Bridge and Middle Pickup in Series
Position 3. Middle and Neck Pickup in Series
Position 4. Bridge and Neck Pickup Out-Of-Phase, and in Series with Special Tone Capacitor
Position 5. Bridge and Middle Pickup in Series and Out-Of-Phase and in Parallel with Neck Pickup

Bridge: Fender Deluxe, 2-Point, Synchronized Tremolo with Pop in Arm

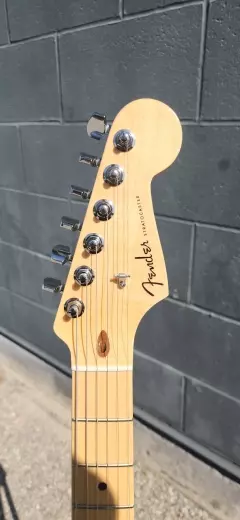

Machine Heads: Fender Deluxe, Staggered Cast/Sealed Locking Tuning Machines
Hardware: Chrome
Pickguard: 3-Ply Mint Green on (700), (770), 4-Ply Brown Shell on (720, 723), 4-Ply Black on (759)
Scale Length: 25.5 (648 mm)
Width at Nut: 1.6875 (43 mm)

Unique Features: Copper Infused, High Mass, 100% Metal Bridge Block, 3 Tall/3 Short, Staggered, Locking Tuning Machines, S-1 Switching, Aged Plastic Parts, White Pearloid (Rosewood Fingerboard) or Black Pearloid (Maple Fingerboard) Dot Position Inlays, Highly Detailed Fret and Nut Work, 4-Bolt Neck Attachment with Micro-Tilt Adjustment, Bi-Flex Truss Rod System, Parchment Knobs and Pickup Covers, Rolled Fretboard Edges

Strings: Fender USA, Nickel Plated Steel
Gauges: (.009, .011, .016, .024w, .032, .042)

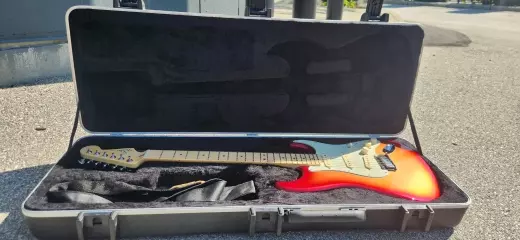

Accessories: Fender/SKB Case, Cable, Strap, Polishing Cloth
Case: High-Tech, Moulded Rectangular SKB Case


DOES NOT COME WITH TREM ARM
