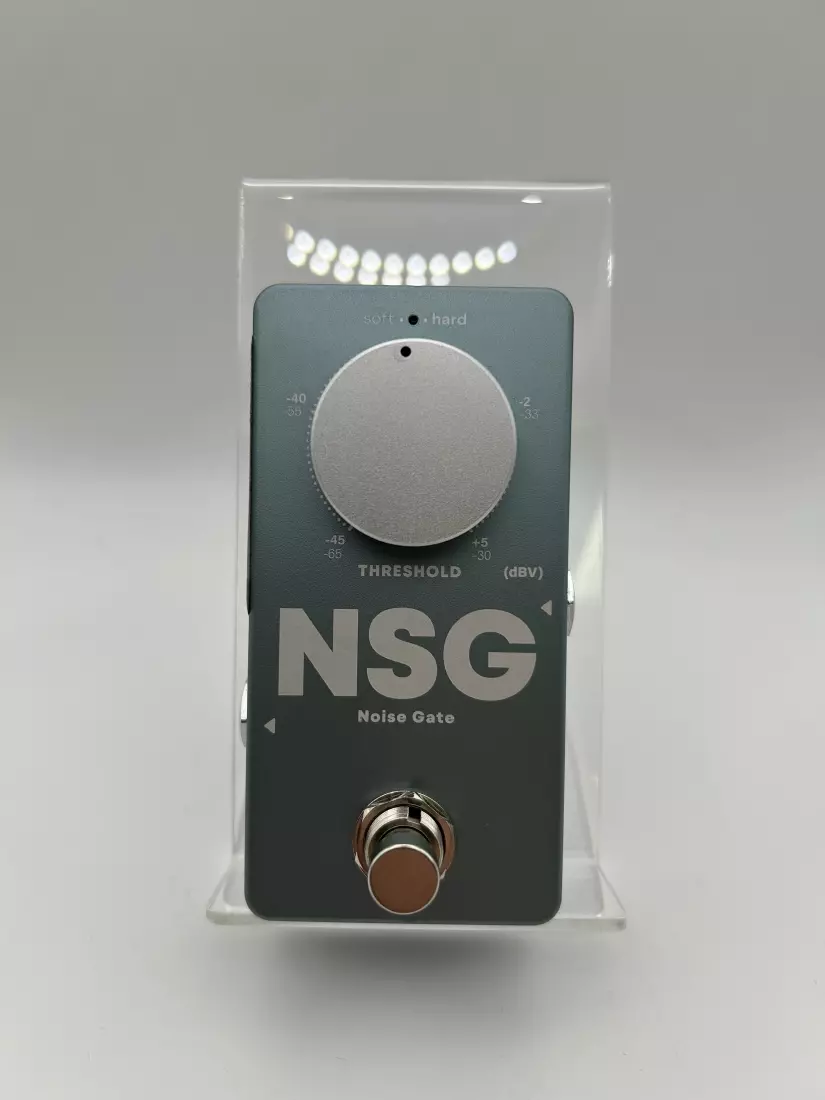

Darkglass - DG-NSG
SKU: 804229
Model: DG-NSG
Serial: nsgp02uw752
Views: 32
Quantity Available: 1
Condition: Used Excellent Condition
Price: $289.99
Buy From Store
Ship from Store
Pick Up in Store
Customer responsible for any shipping charges.
This product may not come in original packaging.
Description
Enhancing quietness
The NSG: Noise Gate comes as a response to these annoyances. Utilizing an adjustable threshold level to filter out sounds below a certain threshold, allowing for only the desired audio to be seized.
Threshold
Use this push knob to control the threshold of the noise gate. Press the knob to switch between the "Soft" mode (Blue LED color) for softer gain reduction and "Hard" (Red LED color) for the more aggressive gate operation.
Threshold range
From -65 dBV to -30 dBV in "Soft" mode.
From -45 dBV to +5dBV in "Hard" mode.
Specifications
Input Impedance: 1 MΩOutput Impedance: 100 kΩ
Current Consumption: 60 mA
Voltage 9V DC (Center Negative)
Dimensions
Width: 50 mm (2")
Length: 36.5 mm (1 1/2")
Height: 100 mm (4")
Weight: 205 g (0.45 lb)
