Traynor - DNB112

Description

Traynor DynaBlock Series bass amps were designed from the ground up with the working musician in mind. Loaded with essential features including Active and Passive level instrument inputs XLR DI output, a versatile four band EQ and an additional low frequency expander, DynaBlock amps deliver virtually any tone a working player needs easily and quickly.

The Low Frequency Expander allows the player to perfectly tune the bottom end response to suit any playing style. Essential features like an in-line post EQ effects loop that provides perfect spot to connect any dynamics control or multi-effects unit are provided. Front mounted 1/4-inch tuner out is provided for added convenience.

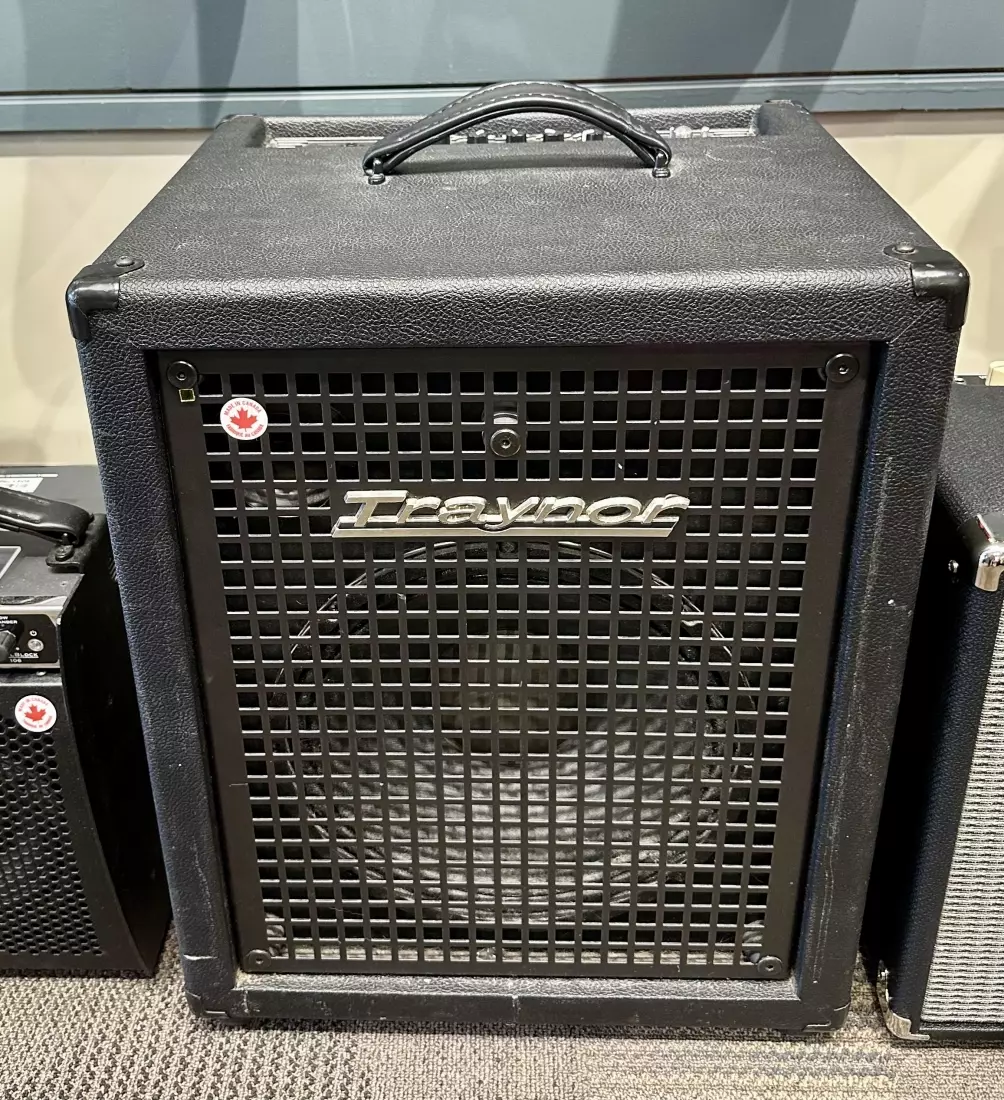

A solid plywood cabinet construction on the DynaBlock DNB112 ensures unmatched reliability under even the most extreme workloads. The solid all-metal grille protects the high quality speaker components while an all-metal box chassis protects the electronic circuitry.


Specifications:
Cabinet Program Power (Watts) 400
Cabinet Impedance (Ohms): 8
Minimum Impedance (Ohms): 4
Burst Power - 2 cycle: 800
Speaker Configuration - LF (Size / Power): 1 x 12-inch
Speaker Configuration - HF (Size / Power): Piezo Tweeter
Frequency Response (Hz +/-3dB) 40 - 18k
Hum and Noise (dB): -85
Channel 1 - Inputs: Passive, Active
Channel 1 - Switches: Mute, DI pre/post EQ, Ground Lift, Tweeter Defeat (rear)
Master Volume Control: Yes
Main Tone Controls: Bass, Low Mid, Hi Mid, Treble, Low Expander
Input Sensitivity (mV): 80
Line Out (type / configuration): XLR / Rear
Effects Loop / Location: Yes / Rear
Effects Footswitch / Function: None
Effects Return Sensitivity (Vrms): 0.5
LED Indicators: Power, Clip, Mute
Protection: Thermal, Overcurrent
External speaker output / location: 2 x Speakon Combo, 1 x 1/4-inch
Headphone Jack: Yes / Rear
Dimensions (DWH, inches): 15 x 20.5 x 19
Dimensions (DWH, cm): 38 x 52.1 x 48.2
