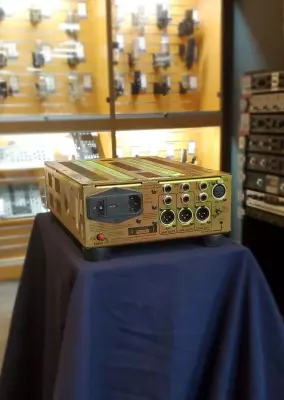

Millennia Media - TD-1

Description

• Four distinct inputs can be optimized for any source
• Instruments – Twin Topology® DI channel; dual-triode 12AT7 vacuum tube or discrete FET solid state
• Microphones – discrete solid state HV-3 microphone preamplifier
• DAW or tape outputs – Discrete solid state line level amplifier
• Guitar power amp outputs – Speaker Soak™ technology
• Powerful yet musical tonal shading
• Two bands of mastering-grade NSEQ-2 parametric Eq; 20 Hz to 20 kHz center frequency, 0.4 to 4.0 Q
• Optimized DI input for any instrument with variable 470 k / 2 M / 10 M impedance
• Nine outputs for unlimited functionality
• Patented Re-Amp outputs with custom-designed magnetics emulate Les Paul® and Strat® pickups
• Audiophile headphone output
• Balanced and unbalanced monolithic outputs
• Balanced and unbalanced discrete FET outputs
• Microphone level output with large-geometry DIT-01 transformer: -3 dB 3 Hz – 300 kHz
• Effortlessly musical performance at all dynamic levels
• Input headroom >100 V, output headroom > 30 V
• 100% effective hum removal with numerous ground lifts & isolations
• Built for critical professional applications
• Ultra-clean toroid power supply: internal sub-chassis
• Gold connectors, OFC audio wiring, silver Teflon power wiring
