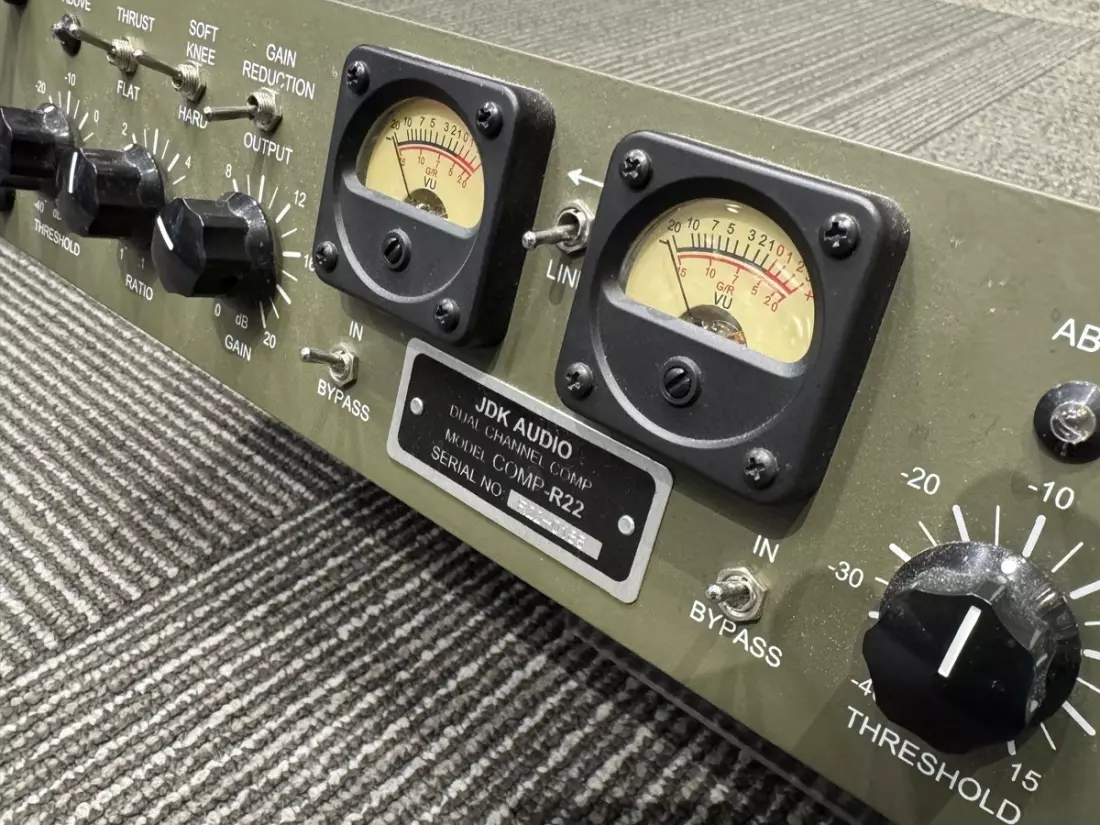

JDK Audio R22-JDK Dual Channel Compressor
Sale Price: $1325
Buy From Store
Customer responsible for any shipping charges.
Description
The JDK Audio R22 dual channel compressor features two channels of API's patented award winning compressor circuit in a rack mount unit with internal power supply. This is the same compressor circuit originally designed into all ATI Paragon mixing consoles. Each channel includes the patented 'THRUST' switch to protect the sensitive high frequency content of the audio signal even under the most vigorous of compression ratios. The perfect companion to your R20 mic-preamp and R24 EQ, the R22 compressor provides comprehensive easy-to-use control of the audio signal with custom VU metering of both output and gain reduction. The two channels can even be linked for use as a stereo compressor with true RMS power summing of the left and right signals.
Features
* Patented THRUST circuit* Variable Threshold, Ratio, and Make-up Gain controls
* Switchable metering of output level and gain reduction
* Above threshold LED indication
* Switchable Hard or Soft Knee compression
* Linkable for stereo operation with true RMS power summing
* Fully balanced XLR and 1/4" inputs and outputs
Specifications
Inputs:Balanced XLR and 1/4" jack (1/4" normalled priority)Outputs: Balanced XLR and 1/4" parallel jacks
Power Consumption, Quiescent: 7.81 Watts
Input Impedance: 15KΩ Balanced
Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz
THD+N @ 1 kHz, +4 dBu: < 0.005%
Maximum Level: +19 dBu
Signal-to-Noise Ratio: -88 dBu (comp in); -92 dBu (bypass); -106 dB
Crosstalk: < 84 dB @ 20 kHz
Stereo Link: True RMS Power Summing
Meter: -20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable
Compressor Controls
Threshold Range: -40 dBu to +15 dBu
Ratio Range: 1:1 to 10:1
Makeup Gain Range: 0 dB to +20 dB
Hard or Soft Knee switchable
Flat or Thrust side chain filter switchable
Attack Time: Program and Control Adaptive, 10mSec to 40mSec
Release Time: Program and Control Adaptive, 30mSec to 400mSec
Current: 93 mA, 10.8 VoltAmps
Dimensions
Fits: 2U EIA 19" Rack
Size: 19" x 3.5" x 12" Deep
Weight: 10.23 lbs
