Flock Audio 64 Point Patch System

Description

The Flock Audio PATCH System is a digitally controlled, 100% analog audio patch bay routing system. A combination of Software known as the PATCH APP and a 64 Point Connection PATCH Hardware component, combined allows users to easily route and control analog audio routings without having to resort to the use of manual patch cables.

The PATCH Hardware component is a 1U rack mountable unit that acts as the center piece hub of an audio equipment processing setup. Utilizing digital control over analog audio signals is what makes the PATCH System unique and unlike anything else in the audio industry.

The PATCH APP software application (OSX & Windows Compatible) is designed with familiarity in mind. PATHs in the application represent audio signal flows from top to bottom. Signal flows are divided up into single vertical columns allowing users to drag + drop available analog audio equipment connected to the PATCHs Hardware component. This analog audio equipment is cataloged in the Hardware Index located to the left side of the PATCH APP.

Key Features
* 64 Point Connections (32/32)
* 32 Channels of 48V Phantom Power
* 2 Input (XLR/TRS Combo jacks) / 2 Output (XLR) Front Panel Connections
* Create, Store & Recall Routings
* Advanced Multing Capabilities
* Multiple System Expansion (8 Unit support)
* OSX & Windows Compatible Software
* Software & Firmware Updates
* Fully Integrated Diagnostic Monitoring System
* Safeguard Warning Notifications

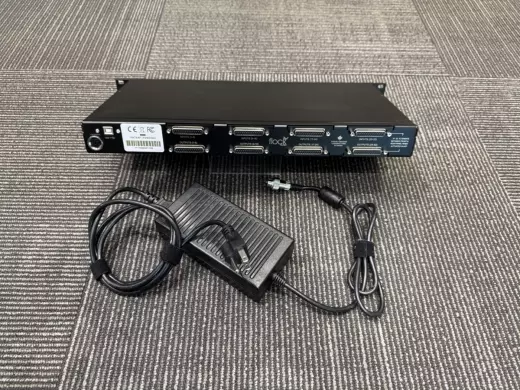

* DB-25 Connectors
* No label templates required
* No patch cables required
* and more!!

Specs
* 32 available Paths (8 per bank)
* 2 Combo inputs & & 2 XLR outputs
* Chassis Dimensions (L x D x H): 482.0 x 227.4 x 43.8mm
* Weight: 4 kg

In the Box
- PATCH 1U Hardware
- IEC Power Cable (110V or 220V)
- 24VDC Power Supply
- USB-A to USB-B (10FT)
- Patch App Registration Key
- 6 Step Quickstart Guide I
- Hardware Index Setup Sheet

Software Compatibility and System Requirements
Mac
OSX: 10.7 Lion or later
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port (Per PATCH System)
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3™ or higher (Recommended)
Internet Connection: Internet Connection is required for activation and updates

Windows
OS: Window 7 or later
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port (Per PATCH System)
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Internet Connection: Internet Connection is required for activation and updates
