Gear Hunter

Samson - SWSATXDE10-K

SKU: 739015 Model: SWSATXDE10-K Serial: watx1k7ja004 Views: 9
Quantity Available: 1 Condition: Demo

Samson - SWSATXDE10-K
Samson - SWSATXDE10-K 2

Sale Price: $739.99

Current Price: $739.99

Buy From Store

Notify Me

 Customer responsible for any shipping charges.


Description

The Airline AHX Wireless UHF Headset System from Samson features a CR99 UHF receiver, an ATX transmitter, and a DE10 miniature condenser, dual-ear headset microphone. The frequency-agile UHF system can be used to capture audio in various environments and offers up to 300' of reliable performance for singers and other active performer applications.

The transmitter is small enough to fit in the palm of your hand and is built with a rechargeable battery. It clips to your belt or shirt pocket and connects via a P3 mini-XLR connector to the low-profile DE10 omnidirectional headset microphone, which provides clear reproduction regardless of the position of the capsule relative to the sound source.

The system's rack-mountable CR99 receiver provides 80 selectable channels of performance and is equipped with a true RF diversity design that minimizes dropouts. Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range.

Specifications

System
- Working Range: 300' (100 m), line-of-sight
- Frequency Response: 50 Hz to 15 kHz
- Dynamic Range: 100+ dB, A-weighted
- Signal to Noise: 95+ dB
- Operating Temperature: 14 to 140F (-10 to 60C)
- Tone Key Frequency: 32.768 kHz

Wireless Receiver
- Audio Output Level: Balanced - +9 dBu, Unbalanced - +14 dBu
- Audio Output Impedance: Balanced - 240 Ohms, Unbalanced - 810 Ohms
- Sensitivity: -100 dBm / 30 dB sinad
- Image Rejection: 50+ dB
- Operating Voltage: 15 VDC 200 mA

Transmitter
- Input Connector: Mini-XLR (P3)
- Input Impedance: 3 kOhms
- Gain Range: Input - 20 dB
- RF Power10 mW EIRP
- Power Requirements: 3.6 V 500 mAh
- Battery: Lithium Ion rechargeable battery
- Battery Life (approx.): 6 hours

Microphone
- Element: Back electret condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45 3 dB 1 V/Pa/at 1 kHz
- Output Impedance: 2kOhms 30%
- Maximum SPL: 120 dB
- Operating Voltage: 1.5 to 12 VDC
- Connector: Mini-XLR (P3)

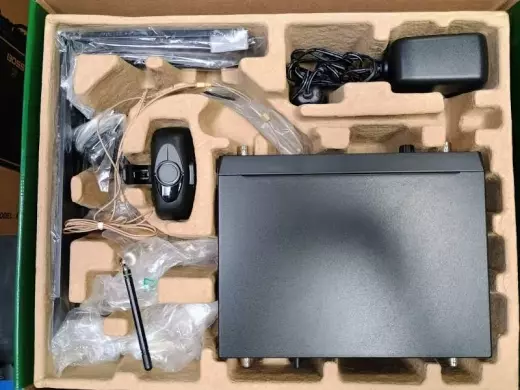

Includes

- x 1 Samson Airline AHX Wireless UHF Headset System
- x 1 CR99 UHF Receiver
- x 1 D10 Headset Microphone
- x 1 ATX UHF Transmitter
- x 4 Windscreens
- x 1 Rackmount Kit
- x 1 AC Adapter
- x 1 Limited 2-Year Warranty
