Shure - P3R-G20

Description

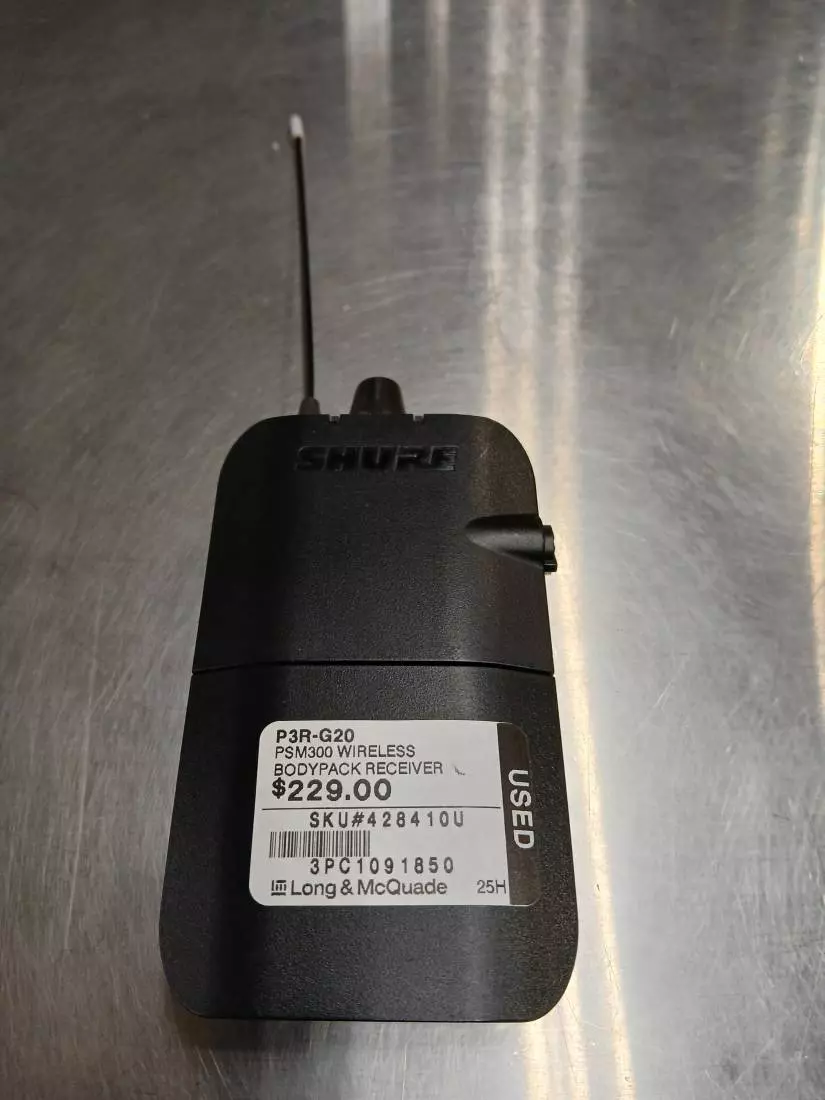

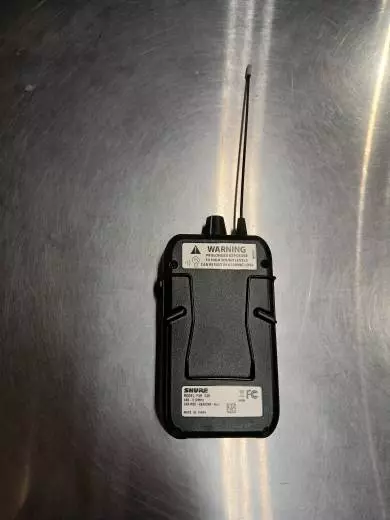

The P3R is a wireless stereo bodypack receiver for use with the Shure PSM 300 Personal Monitor System.

With 24-bit digital audio clarity and up to 90 meters of range, the P3R offers reliable wireless freedom that covers every corner of the stage. Simply connect a set of earphones and adjust the controls to create a wireless personal mix. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Use MixMode® technology to customize the mono blend from two channels of audio, or select stereo mode and adjust the left/right balance as desired. One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync.

Includes zippered bag and 2 AA batteries.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features
* Slim, lightweight, durable form factor
* Frequency scan and IR sync quickly finds and assigns a clean channel
* MixMode technology enables adjustment of two independent monitoring mix levels
* Stereo mode enables adjustment of left/right balance
* Easy to adjust volume knob and mix control
* 2 AA batteries provide up to 7 hours of continuous operation
* Power save mode preserves battery life when earphones are not connected
* Power and battery status LED

Specifications
Active RF Sensitivity: 2.2 V
Image Rejection: >90 dB
Adjacent Channel Rejection: >60 dB
Intermodulation Attenuation: >50 dB
Blocking: >60 dB
Audio Output Power: 80 mW (per output)
Minimum Load Impedance: 16Ω
Headphone output: 3.5 mm (1/8") stereo
Net Weight: 98 g (3.5 oz.) (without batteries)
Dimension: 1106421mm HWD
Battery Life: 57 hours, AA batteries (continuous use)
