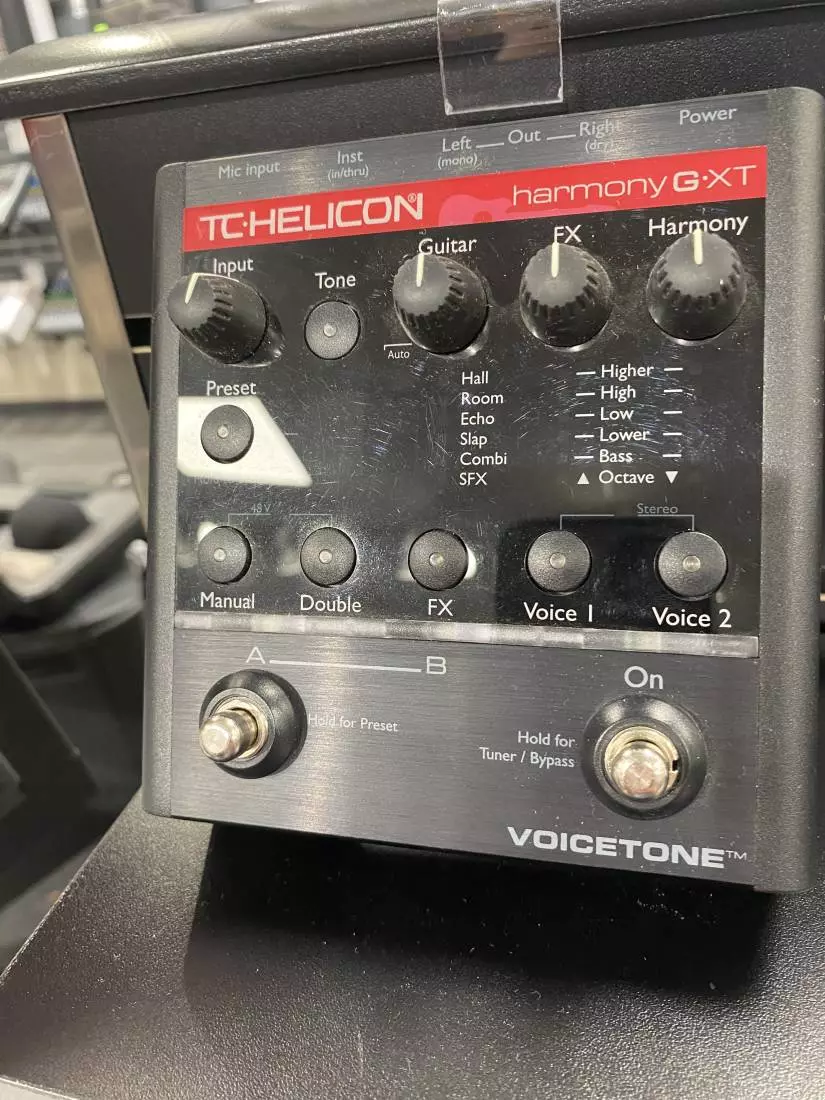

TC-Helicon - VOICETONE-HGXT

Description

VoiceTone Harmony-G XT was built to make your voice rock with quality TC-Helicon harmonies and vocal effects. It's packed full of stunning effects from the popular VoiceLive series of processors. With several harmony choices, doubling effects, reverb, pitch correction, Tone control and A/B switching between effects, Harmony-G XT is your ultimate performance weapon.

Features:

* Creates stunning, natural harmonies by automatically listening to your guitar and voice
* Tone switch adapts to your voice to make you sound crisp, clean and full
* 18 combinations of reverb & delay shared by vocal and guitar input
* High quality mic preamp with phantom power and XLR input
* Guitar thru & in, and updates via USB with VoiceSupport

Specifications:

Included Effects: VOCAL FX, Mod, Delay, Reverb, Harmony, Double, Adaptive, Tone, Pitch Correction
Guitar FX: Guitar FX & Tuner

CONTROL
* 20 presets (10 presets each with part A and B)
* Multiple effect and double style
* Dedicate voicing buttons
* Harmony, Effect and Guitar level
* Mic input level

DESIGN
Size (HxWxD): 5.25 inches x 5 inches x 1.5 inches (132 mm x 130 mm x 41 mm)
Weight: 1.5 lb. (0.72 kg)

CONSTRUCTION
* Die cast steel and anodized extruded aluminum
* Ultra bright LEDs

CONNECTIONS
Inputs:
* Mic Connector: Balanced XLR, input impedance 1kOhm
* Mic Input Sensitivity @ 0dBFS: -44dBu to +2dBu
* Mic Input Sensitivity @ 12dB: headroom -56dBu to -10dBu
* Phantom Power: +48V (switchable)
* Instrument Input Connector: Unbalanced 1/4″, input imp. 1MOhm
* Instrument In Sensitivity: +15dBu @ 0dBFS
* EIN: -126dBu @ max mic amp gain, Rg = 150 Ohm
* Power Input: 12 VDC 300 mA, tip negative
Outputs:
* Main Output Connectors: Balanced XLR
* Output Impedance: 40 Ohm
* Output Level: +2 dBu @ 0dBFS
* Instrument Thru Connector: Unbalanced 1/4″ phone jack
* Instrument Thru output impedance: 270 Ohm
* Dynamic Range, Mic. @ Min gain >108dB: 20 Hz 20kHz *A-weighted
* Dynamic Range, Mic. @ -18dBu sensitivity > 104dB: 20hz 20kHz*
* THD+ Noise, Mic. @ Min gain: < -90dB
* Frequency Response, max gain -1.5dB @ 40 Hz, +0/-0.3 dB: (200Hz to 20 kHz)
* Instrument In to Thru Dynamic Range: >119dB
* Tuning Mute Attenuation: >100dB

CONVERSION CHARACTERISTICS
* Sample Rate :48 kHz
* Converter: AKM AK4620B
* AD / DA Conversion: 24 bit, 128x oversampling bitstream

Included:

* Region specific power supply
* USB cable
* User guide
