Whirlwind PressBox 12-Output Passive Press Box
Sale Price: $1175
Buy From Store
Customer responsible for any shipping charges.
This product may not come in original packaging.
Description

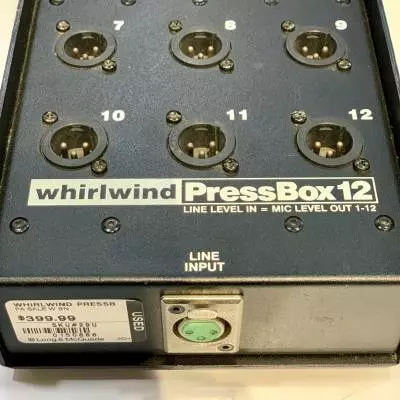

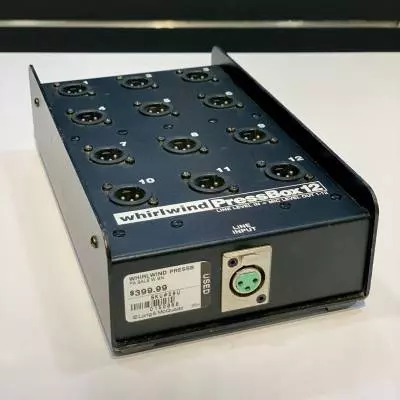

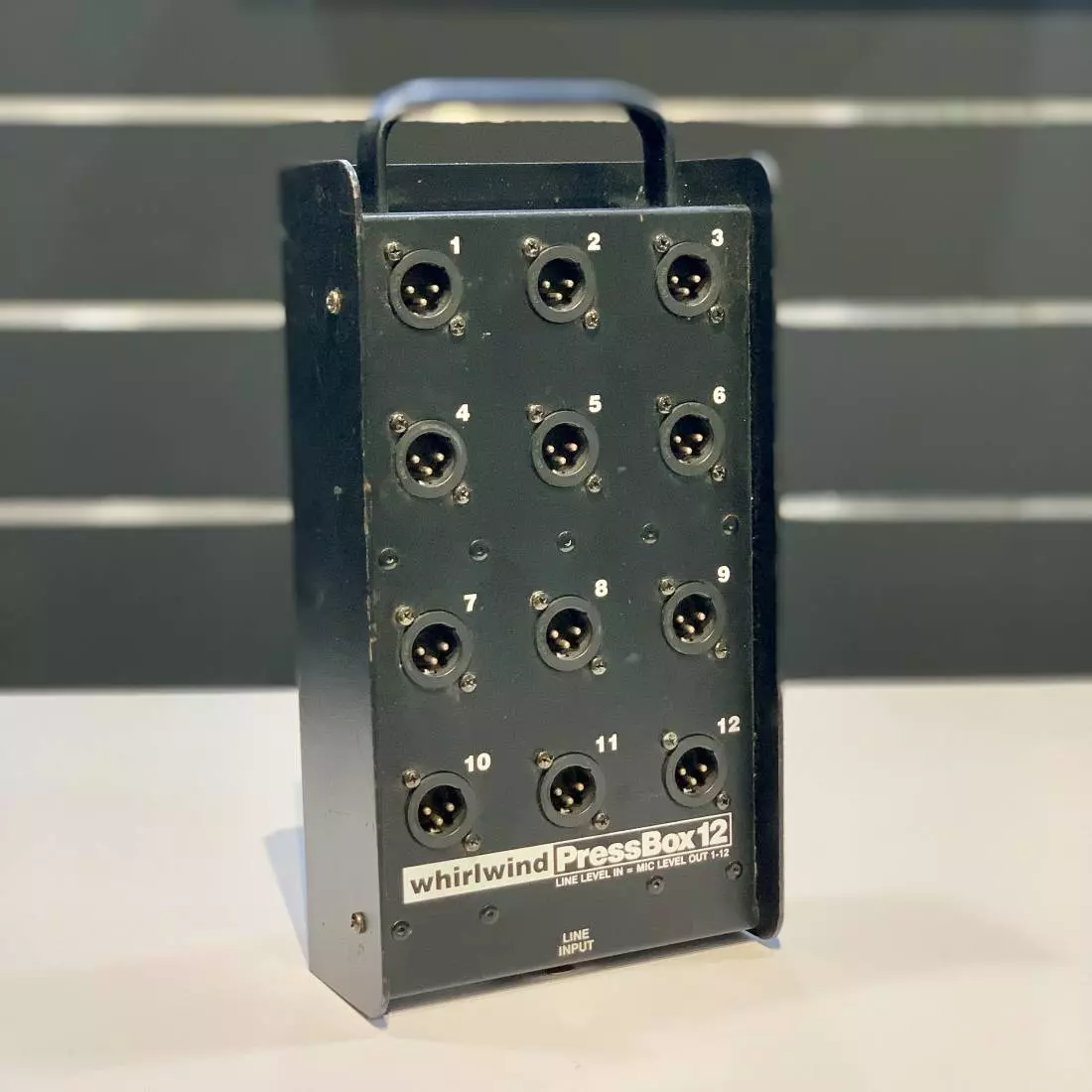

The PB12 passive pressbox distributes one line level input to 12 mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout.
The boxes are constructed with rugged, cold-rolled steel. Available with 6, 12, or 24 outputs.
Input Impedance: 2k Ohms
Output Impedance: 150 Ohms
Operating Level: 0 dB input = -43 dB output
Channel-to-channel Isolation:
65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs
* Line level signal MUST be provided into these passive press boxes. A microphone directly into the input will not provide enough signal level for proper operation.
