Moog - GRANDMOTHERDARK

Description

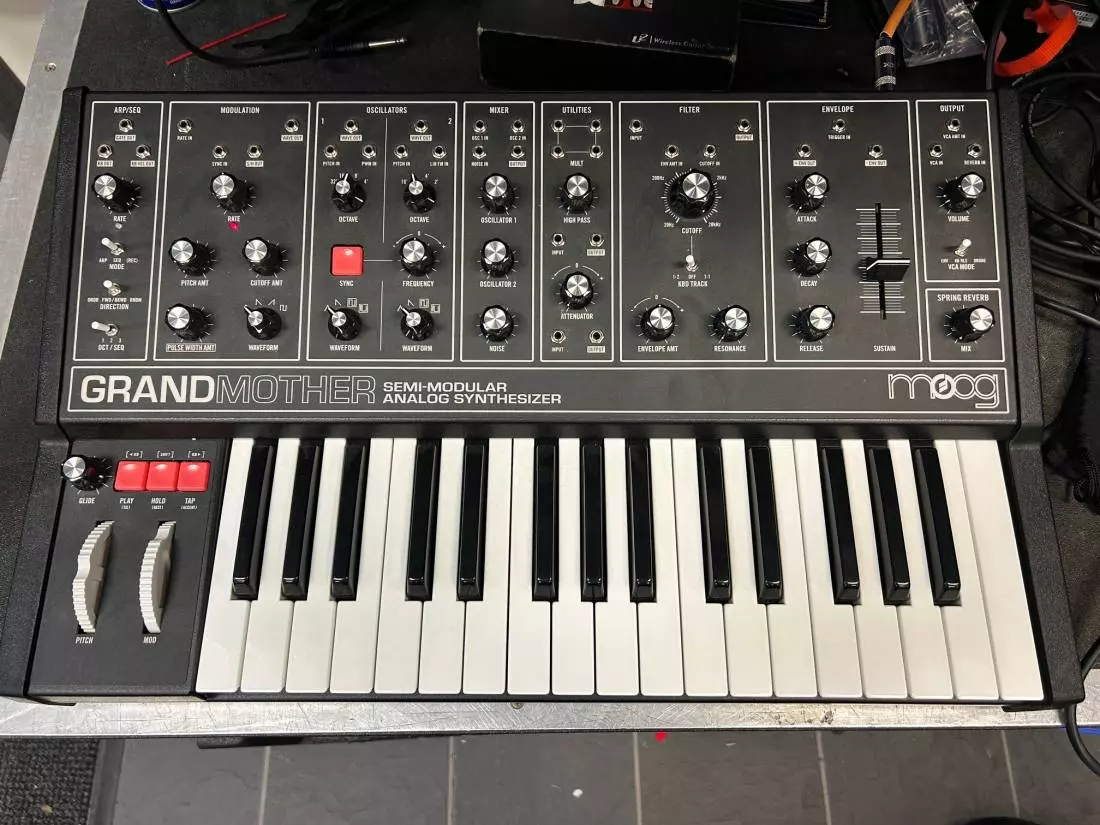

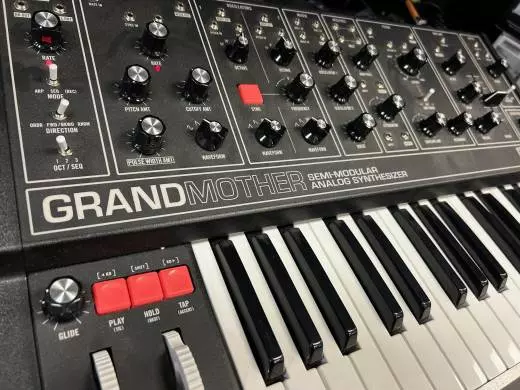

Grandmother Dark is a fresh addition to Moog's popular line of semi-modular keyboard synthesizers, offered in a classic all-black colour scheme invoking the timeless look of Moog's all-black control panels. The Grandmother is capable of creating anything from smooth bass to aggressive leads. New built-in functions, including Sequencer and Arpeggiator, give expanded control and free your hands to patch and tweak. In addition, a built-in analog reverb tank can be patched into, making Grandmother a great studio addition.

Features
* Performance: 32-note keyboard with arpeggiator and a 256-note sequencer withthree sequence locations
* Sound Sources: Two voltage-controlled oscillators with hard sync and a white noise generator
* Analog Effects: 6" spring reverb tank
* Sound Blending: 3-channel mixer with an additional 1/4" external audio input
* Sound Shaping: Classic 4-pole 10Hz to 20kHz Ladder filter and a patchable 1-pole high pass filter
* Utilities: Patchable 4-point mult and a bipolar attenuator
* Dynamics: Analog ADSR envelope
* Modulation: Wide-range analog LFO with Sync input and aSample/Hold output
* Patch Points: 41 patch points with 21 inputs and 20 outputs

Specifications

TYPE: Semi-Modular Analog Synthesizer

SOUND ENGINE: Analog

NUMBER OF KEYS: 32 Full-Size Keys

TYPE OF KEYS: Velocity-sensing (Velocity signal is not hard-wired available via MIDI and KBD VEL OUT jack)

OTHER CONTROLLERS: Pitch Bend, Mod Wheel, Variable Glide

POLYPHONY: Monophonic

SOUND SOURCES: 2 Oscillators with selectable Waveforms (Oscillator 2 supports Sync to Oscillator 1 plus linear FM), 1 White Noise Generator, External Input jack

VCF FILTER (LOW PASS): -24dB/Octave Moog Ladder Filter with Resonance (Self-Oscillating)

STATIC FILTER (HIGH PASS): -6dB/Octave

MOD SOURCES: Modulation Oscillator (Sine, Sawtooth, Ramp, Square), S/H Output, plus Envelope and Key Tracking

ENVELOPE: Four-Stage (ADSR)

ATTENUATOR: Bipolar

MULT: Four Parallel-wired Non-buffered Patch Points

EFFECTS: Spring Reverb

ARPEGGIATOR / STEP SEQUENCER: (256 Steps; three Sequence Files)

PATCH POINTS:
* 41 x 3.5mm front and rear panels
* 21 Inputs
* 16 Outputs
* 4 Parallel-wired Mults

AUDIO INPUT: One 1/4" TS jack (Rear Panel)

AUDIO OUTPUT: One 1/4" TRS jack for headphones or line level output (Rear Panel)

MIDI I/O: 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)

POWER: Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz

DIMENSIONS (H x W x D): 13.97 x 58.42 x 31 cm / 5.5" x 23" x 12.25"
WEIGHT: 7.25 kg (16 lbs)

In the Box:
- Grandmother Dark
- Manual
- Patch Cables (8 total, 2x 6/12/18/24")
- Registration Card
- Drawstring Bag
- IEC Cable
- Power Brick
- Instrument Catalog
