ADAM Audio - AD-F7

Description

The F-Series Professional Monitoring for Everyone

For music lovers, musicians and first and foremost for sound engineers and producers, good speakers should be like good friends. At best they are sincere and would not hide anything from you. In recording or mixing sessions it is vital to hear the slightest shade within the sound in order to be able to make adjustments. Only with that you will be able to record that perfect take or create the perfect mix.

The new F series, consisting of the two active nearfield monitors F5 and F7 and a dedicated subwoofer, the SubF, is designed in the continuing tradition of the legendary ADAM professional monitors. The aim is to focus on the essence of a monitor, i.e. precise and natural sound reproduction at a new, lower price point.

With the new F series you are able to have the same great tools the worlds best producers and mastering experts rely on for their daily studio work. The extraordinary clarity of the X-ART tweeter paired with the powerful bass reproduction of the woofer make these speakers very attractive for a number of applications. Be it an expressive monitor in your home recording studio or on your desktop, the new F series is an ideal entry to the world of Pro Audio.

Professional Monitoring with the F7 speaker

The F7 offers all the features you want to see in a professional studio monitor: a broad frequency range (44Hz - 50kHz) plus comprehensive control.

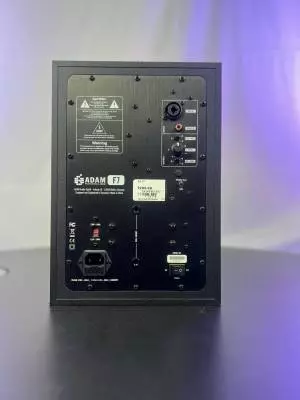

The monitor is equipped with a Room Equalizer for high (> 5kHz) and low (< 300 Hz) frequencies and an overall volume control on the rear panel. A high pass filter (to be used in conjunction with a subwoofer) and XLR/TRS/RCA inputs complete the professional functions of the F7.

The F7 is driven by two A/B class amplifiers with 100W RMS / 140W Music. This helps the monitor to provide a vibrant, deep bass and a maximum SPL of 109dB per pair. The reproduction of dynamically challenging tracks should not be a problem with this powerhouse.

SPECIFICATIONS

Mid-Woofer
Number: 1
Basket : 7" (177 mm)
Voice coil : 1.5" (37 mm)
Cone material: Glass fibre/paper

Tweeter
Number: 1
Type: X-ART
Diaphragm area: 3 inch (1848 mm)
Equiv. Diaphragm : 1.5" (42 mm)
Velocity transform ratio: 4:1

Built-in Amplifiers
Mid-Woofer: 1
Type: A/B
Amp. power RMS / music: 60 W / 85 W
Tweeter: 1
Type: A/B
Amp. power RMS / music: 40 W / 55 W

Control panel
Input Sensitivity: -∞ to +6 dB
High Shelf EQ > 5 kHz: 6 dB
Low Shelf EQ < 300 Hz: 6 dB

Input connectors
Analog: XLR / RCA

General data
Frequency response: 44 Hz - 50 kHz
Max SPL per pair at 1m: ≥109 dB
Crossover frequencies: 2600 Hz
Weight: 19.8 lb (9 kg)
Magnetically shielded: No
Height x Width x Depth: 12.5" (321 mm) x 9" (225 mm) x 10.5" (266 mm)

*Monitors Sold Separately*
