EVH 5150III 2X12 TUBE COMBO BLK
Buy From Store
Pick up at the store only. Contact Toronto (Bloor St.) Ontario
This product may not come in original packaging.
Description

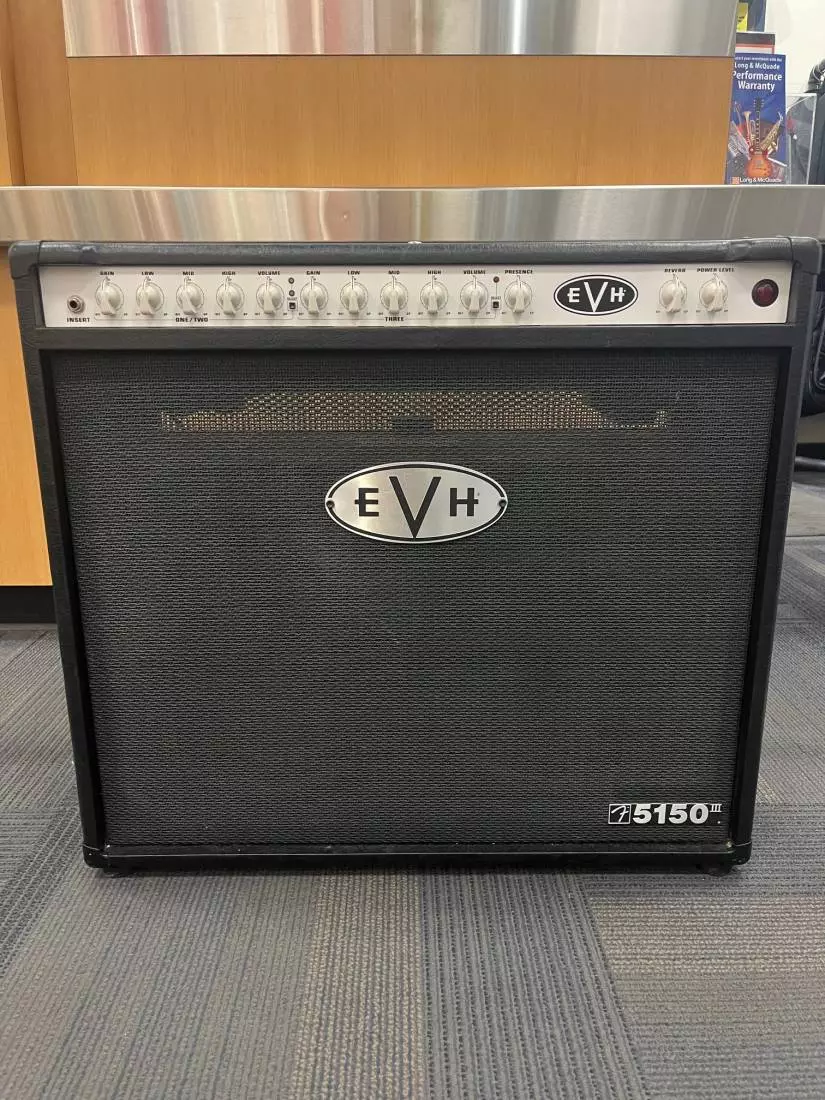

The EVH 5150III Combo is a tube combo amp with two Celestion G12M 8-ohm speakers and three channels (clean, crunch and lead). Powered by seven JJ ECC83 (12AX7) preamp tubes and two JJ 6L6 power tubes, it also features front-panel adjustable power output from 50 watts down to one watt.

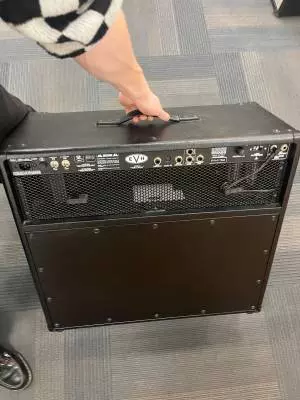

Features include a single input, rear-panel selectable output impedance (4, 8 or 16 ohms), versatile controls (gain, low, mid, high, volume, master presence, rear-panel master resonance, power level, reverb), built-in DSP reverb, rear-panel MIDI input and preamp output, two rear-panel parallel speaker outputs, rear-panel effects loop and headphone jack (mutes power amp), and four-button footswitch (controls all three channels and reverb).

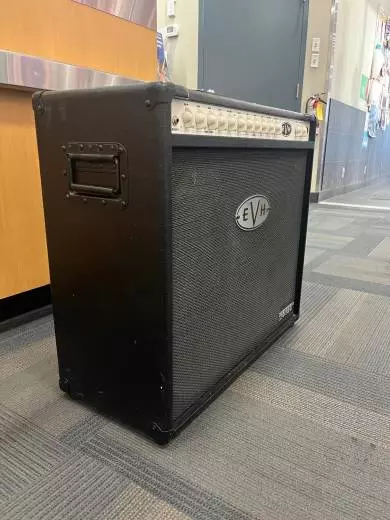

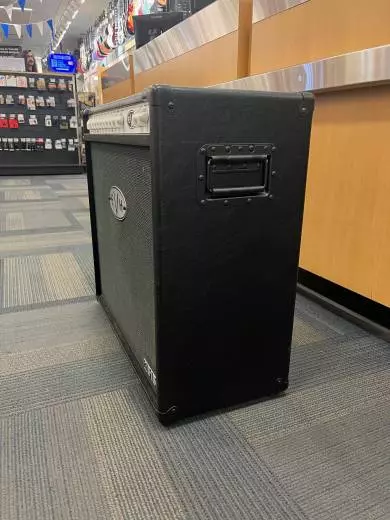

Construction features a custom-shaped birch cabinet with special internal baffling, vintage-style chicken-head control knobs, red jewel, recessed metal side handles, plastic top strap handle, and casters. Fitted cover optional.
ELECTRONICS
Voltage: 120V - 2254000010, 120V - 2254000410
Effects Loop: 1/4" - (Send/Return)
Inputs: One - 1/4"
Headphone Jack: 1/4" Stereo
Line Out: One - (1/4")
Extension Speaker Jack: Two 1/4" Parallel
Channels:Three - (Clean, Crunch, and Lead)
Power Handling: Adjustable-50 watts RMS Max Down to 1 watt
Controls: Gain, Low, Mid, High, Volume, Master Presence, Rear Master Resonance, Power Level, Reverb
HARDWARE
Cabinet Material: 7-Ply 5/8" Birch Plywood
Pilot Light Jewel: Red Jewel
Handle: Two Spring-Loaded Side Handles and One Molded Plastic Top Handle
Cover/Grill Cloth: EVH Woven with Large Logo and Perforated Grille Panel
Output Impedance: 4, 8 or 16 ohms (Selectable)
Amplifier Length: 12" (30.4 cm)
Amplifier Width: 27.5" (70 cm)
Amplifier Height: 25" (63.5 cm)
Amplifier Weight: 84 lbs (38.10 kg)
Effects: Reverb
SPEAKERS
Speaker: Two - 12" Celestion G12M
Speaker Impedance: 8 ohms
TUBES
Preamp Tubes: 7 JJ ECC83 (12AX7)
Power Tubes: 2 JJ 6L6
MISCELLANEOUS
Unique Features: Midi Channel and Reverb switchable, master resonance control
ACCESSORIES
Footswitch: 4-Button Footswitch Included
Casters: Pop-out Casters Included
Knobs: Chicken-Head Style Pointer
Accessories: 4-Button EVH 1/4" Footswitch. Ch1, CH2, CH3, Reverb Included
