Darkglass Duality Fuzz - DG-DFZ2
SKU: 788595
Model: DG-DFZ2
Serial: AT57KT467
Views: 19
Quantity Available: 1
Condition: Used Excellent Condition
Buy From Store
Pick up at the store only. Contact Burlington Ontario
Sorry, this item is not available for purchase
Description

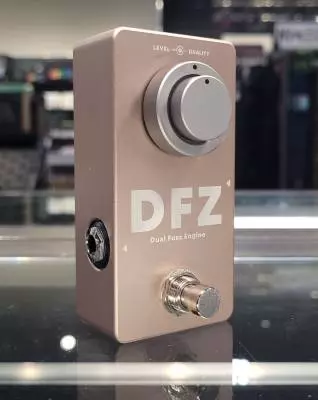

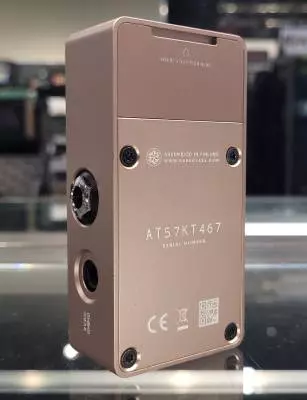

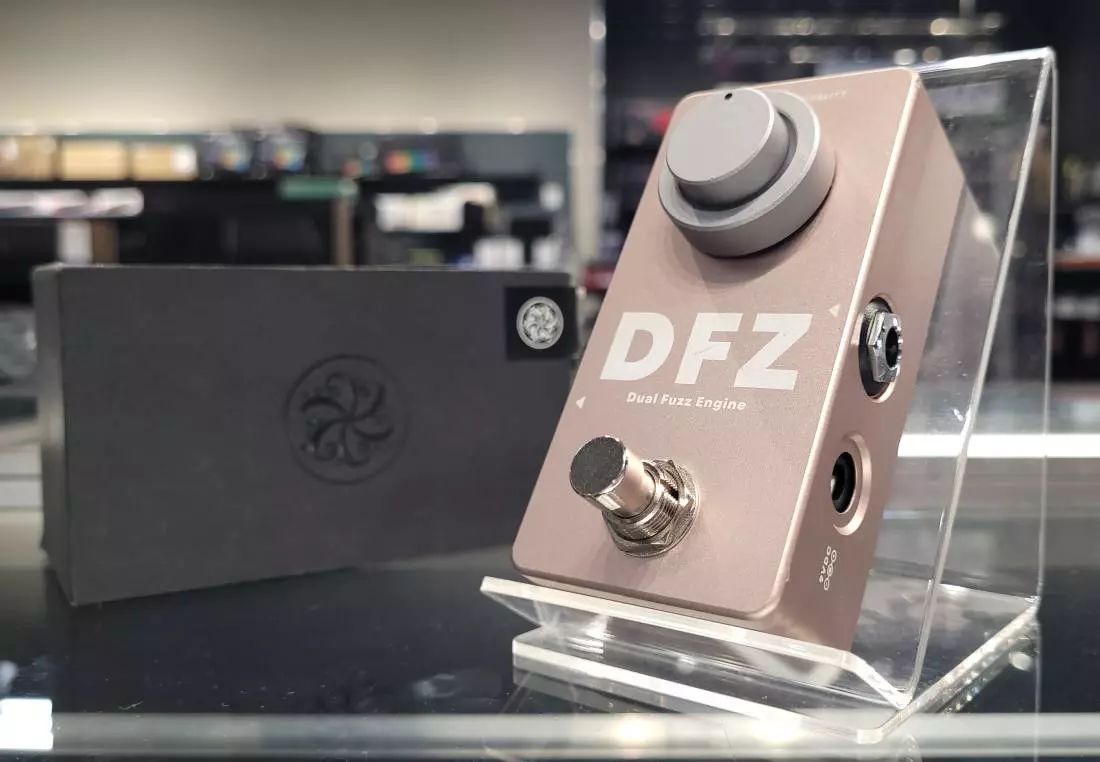

*This pedal is used, and has light paint scratches pictured above.*
The Duality is a unique fuzz pedal that contains two discrete fuzz circuits - a gated saw-tooth wave and a raunchy high-gain sound - which can be mixed together to yield a vast selection of distinct sonic textures.
Features
Level Knob - Sets the volume of the overdriven signal.Duality Knob - Mixes two discrete fuzz circuits. Set it at minimum for a pure gated saw-tooth wave, or crank it up for a tighter high gain fuzz.
Blend (Back) - Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
Filter (Back) - Controls the amount of high frequency content in the fuzz signal.
Technical Specifications
Input Impedance: 1 MΩOutput Impedance: 100 kΩ
Current Consumption: ~40 mA

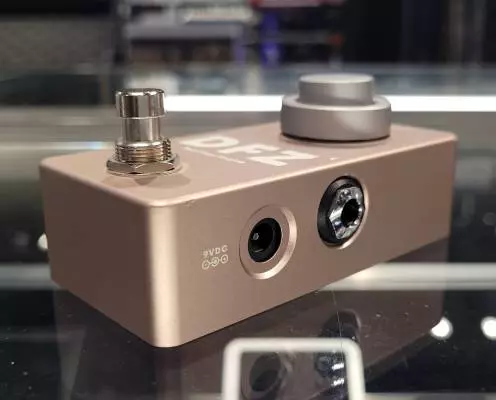

Voltage: 9V DC (Center Negative)
Dimensions (W x L x H): 50 mm x 45 mm x 100 mm / 2 x 1-3/4 x 4 inch
Weight: 205 g / 0.45 lb
Important
The Duality Fuzz has a current draw of 30 mA. Only use a regulated 9V DC adapter with a center-negative plug.
Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
