Ashdown Engineering - RM500-EVO-II

Description

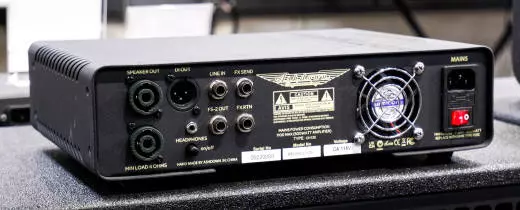

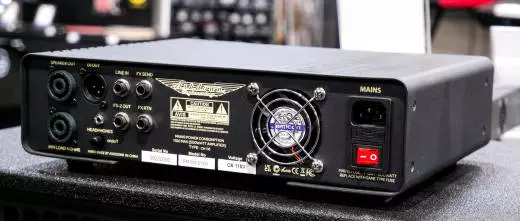

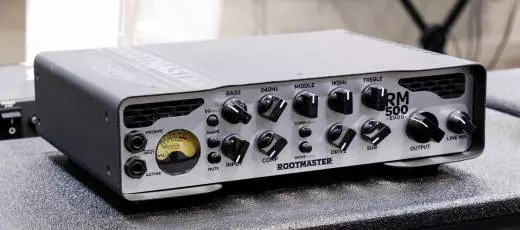

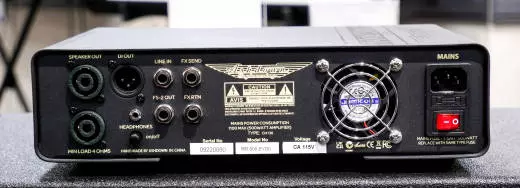

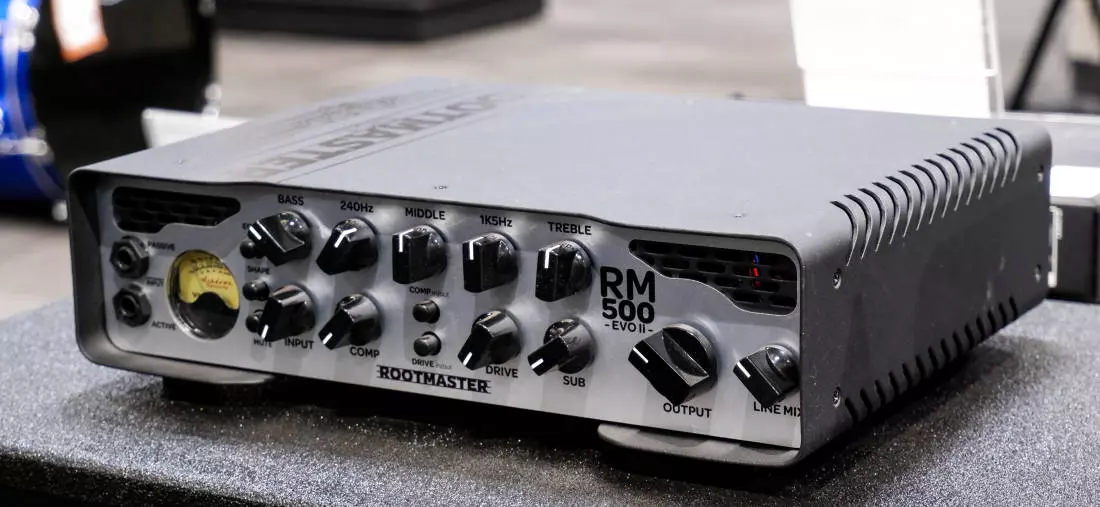

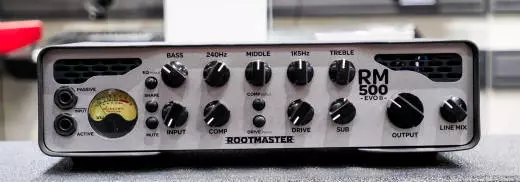

***All photos are of serial number 09220080 - Taken by the team at L&M Brampton - Everything included in purchase is shown in photos***

Socials, Sale Details, Giveaways, Lessons and Even More Deals!

For those seeking Ashdown tone, power and reliability without the weight, the RM-500 EVO II is the solution. Perfect for small, medium and even larger shows when paired with the right cabinets.

Features
* New on-board headphone preamp
* Passive and active input jack socket for use with high and low output instruments
* Tone shape button
* 5-band EQ
* On-board compressor
* Drive control
* Sub harmonic controls
* Mute button

Specifications
* Power Output: 500 Watts
* Power Requirement: 115-230 Volts
* Speaker Outputs: 2 x Neutrik Speakon/Jack outputs
* Frequency Response: -3dB @ 17Hz und 30KHz
* High Instrument Input: Impedance 3.9m Ohms, input range 150mV
* Low Instrument Input: Impedance 10k Ohms, input range 300mV - 40V p-p
* Line Input: Impedance 22k Ohms, input level 0dBu nominal
* DI Output: 600 Ohm balanced, Level 0dBu nominal
* Tuner Output: Impedance 22k Ohms, Level 0dBu nominal
* Impedance: Minimum 4 Ohms
* Signal to noise: Better than 80dB (EQ flat)
* EQ: Bass +/-15dB @ 100Hz Lo Mid +/-15dB @ 220Hz Middle +/-15dB @ 660Hz Hi Mid +/-15dB @ 1.6kHz Treble +/-15dB @ 7kHz shelving Deep +
* Effects Send: Impedance 22k Ohm, Level 0dBu nominal
* Effects Return: Impedance 22k Ohms, Input Level 0dBu Nominal
* Distortion: Less than 0.5% THD
* Dimensions (H x W x D): 86 x 314 x 235mm
* Weight: 2.1 kg/4.6 lbs
