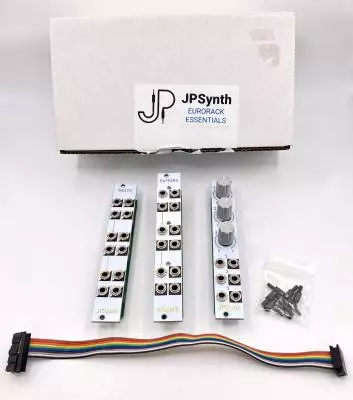

JP SYNTH Essentials: Buffered Multiples, Triple Attenuators, and 4 channel Stereo Mixer

Description

Three Essential modules from JP SYNTH!

Buffered Multiples, Triple Attenuators, and Four channel Stereo Mixer

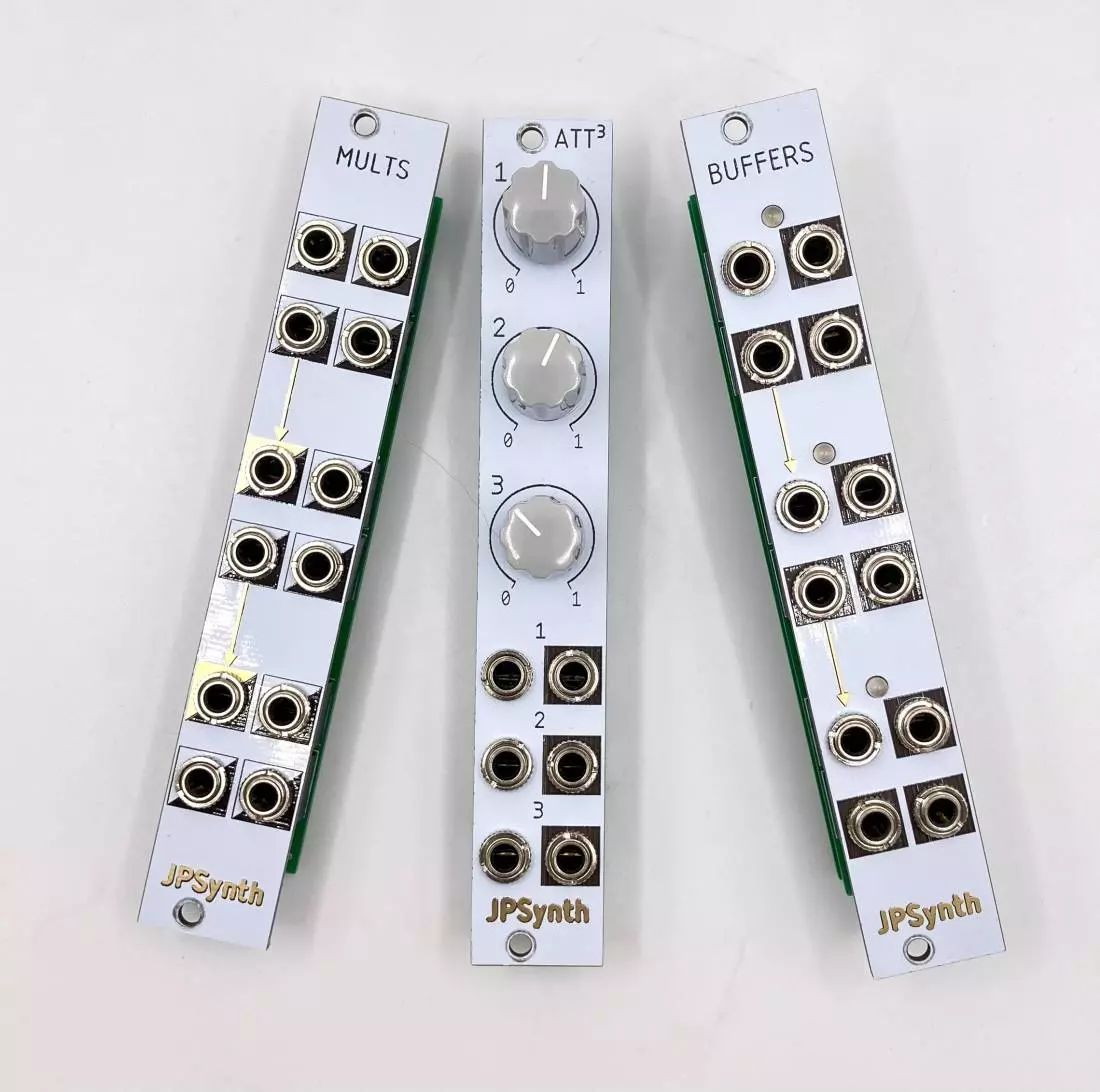

The BUFFERS module is a buffered multiple for your Eurorack system.

BUFFERS provides perfect copies of signals so you can send a single signal to multiple destinations without any signal deterioration. There are three groups of four jacks; the top-left jack of a group is the input jack while the three others are outputs.

Every group has a LED that indicated the polarity of the signal: green is positive and red is negative.

When no cable is inserted in a group's input jack, the group is automatically connected to the group above it. This allows you to use the BUFFERS in the following configurations:
- 3x3: Obtain three copies of a signal, three times
- 1x6 + 1x3: Obtain six copies of a signal, and three copies of a another signal
- 1x9: Obtain nine copies of a signal

The BUFFERS module is used to Send clock/gate/CV signals to multiple destinations without any signal deterioration;

BUFFERS is inexpensive, uses very little power, and unlocks a world of creative possibilities! It's a must-have, essential part of any Eurorack system!

Features:
- Three buffered multiple groups
- Three signal copies per group
- Inter-group normaling
- Bipolar green/red LEDs indicating the polarity of each group's signal
- Skiff-friendly shallow design
- Comes with anti-rash M3 Befaco Knurlies screws
- White panel with black markings and gold plated accents
- Designed to work with power cable plugged either way
- Low power consumption

Inputs:
- 3 Input jacks (one per group)
- Inputs of bottom two groups are normaled to the above group
- Input of top group is normaled to ground
- Power cable can be connected either way without damaging module

Outputs:
- 9 Output jacks (three per group)

Indicators:
- 3 green/red indicator LEDs (one per group)


Triple Attenuators

The ATT3 module is a triple attenuator for your Eurorack system.

Each of the ATT3's three attenuators lets you attenuate a signal using a smooth, performance-friendly knob.

Here's some ways you can use the ATT3:
Attenuate CV signals before patching them in unattenuated CV inputs
In live performace situations, tweak CV signals using a great feeling knob instead of using CV-input micro-knobs often found on modules
Attenuate an audio signal (the knob has linear taper, so it's better suited for CV than audio, but you can still use it for that)

The ATT3 is inexpensive, does not use any power, and unlocks a world of creative possibilities! It's a must-have, essential part of any Eurorack system!

Features:
- Three attenuation channels
- Skiff-friendly shallow design
- Comes with anti-rash M3 Befaco Knurlies screws
- White panel with black markings and gold plated accents
- Passive module (does not require power)

Controls:
- 3 output level knob (one per channel)

Inputs:
- 3 input jacks (one per channel)

Outputs:
- 3 output jack (one per channel)



Four channel Stereo Mixer

The STEREO MIXER is a simple four channel stereo mixer for your Eurorack system.

We designed the STEREO MIXER because we needed a way to mix the different audio signals coming out of our modules. We wanted something that could handle both mono signals and stereo signals. We also wanted the module to be simple, elegant, and compact.

Each channel has two inputs: left and right. If you're using a mono source, just plug it into the left jack and it will be panned in the center.

Features:
- 4 stereo channels
- Supports both stereo and mono signals
- Skiff-friendly shallow design
- Comes with anti-rash M3 Befaco Knurlies screws
- White panel with black markings and gold plated accents
- Designed to work with power cable plugged either way
- Low power consumption

Controls:
- 4 channel attenuation knobs
- 1 mix attenuation knob

Inputs:
- 4 left input jacks (one per channel)
- 4 right input jacks (one per channel)

Outputs:
- Left mix output
- Right mix output
