Neumann - MA 1 Automatic Monitor Alignment Microphone

Description

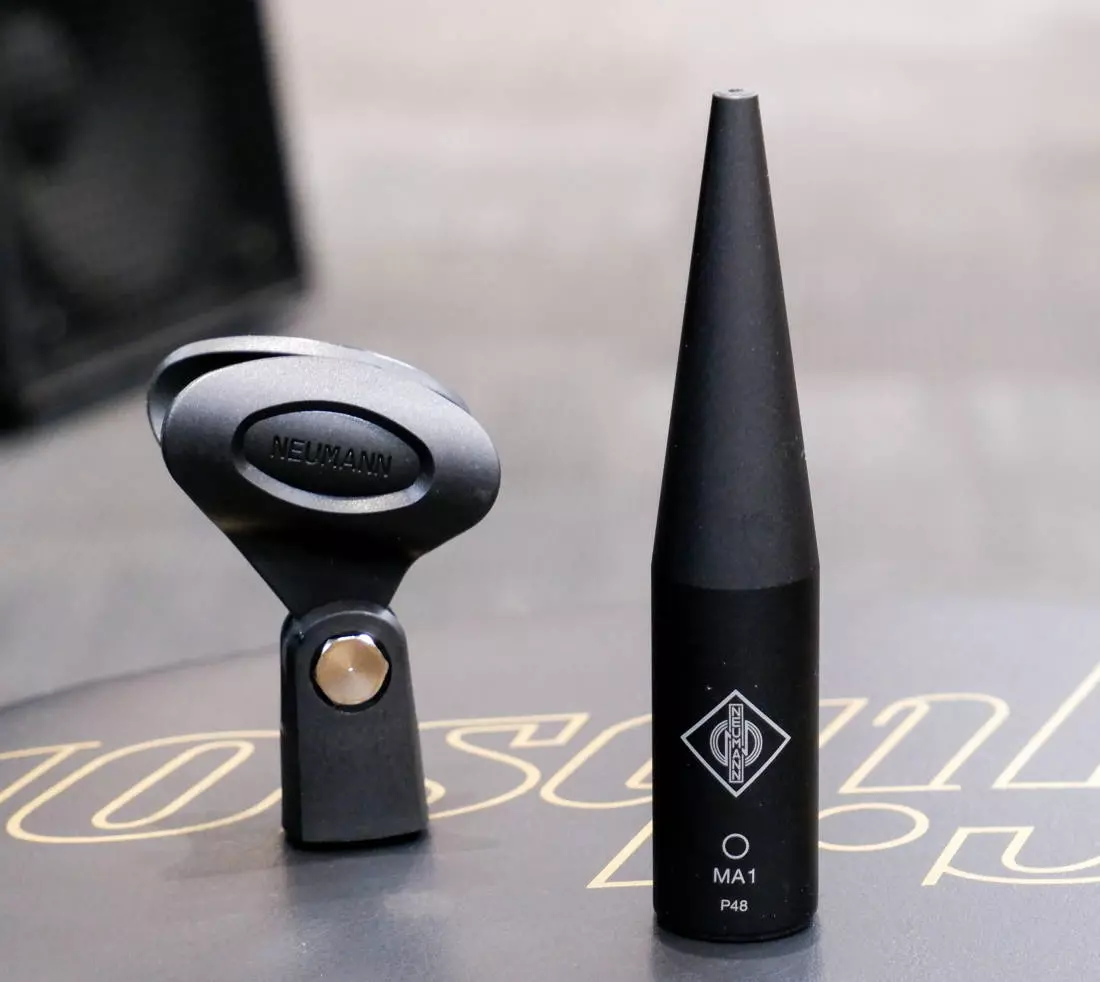

***All photos are of serial number 6432440738 - Taken by the team at L&M Brampton - Everything included in purchase is shown in photos***

Socials, Sale Details, Giveaways, Lessons and Even More Deals![/b

Neumann's Automatic Monitor Alignment MA 1 ensures the best possible sound quality in any room - from home studios to professional control rooms. Using the individually calibrated measurement microphone your acoustic environment is analyzed in a guided process. Advanced calibration algorithms, jointly developed with the world's leading institute in audio processing, Fraunhofer IIS, guarantee an optimally adapted amplitude and phase correction for exact and reliable monitoring.

Features
* Callibration algorithms jointly developed with Fraunhofer IIS
* For stereo setups with KH 80 DSP and all pairs of analog (non DSP-based) Neumann monitors using the KH 750 DSP subwoofer
* Individually calibrated measurement microphone
* Room adaptive target curve
* Phase and amplitude optimization for analog Neumann monitors
* No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered monitors themselves.
* For Mac and PC

Specifications
Acoustical operating principle: Pressure transducer
Directional Pattern: Omnidirectional
Frequency Range: 20 Hz - 20 kHz
Sensitivity at 1 kHz into 1 kohm: 30 mV/Pa -30 dBV +/- 3 dB uncalibrated | 30 mV/Pa -30 dBV +/- 0,5 dB Calibrated (via software)
Rated Impedance: 50 Ohms
Rated load impedance: 1000 Ohms
Maximum SPL for THD 0.5%: 132 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 67 dB
Matching connector: XLR3F
Weight: 37 g
Dimensions: 117 x 23 mm (length x diameter)
