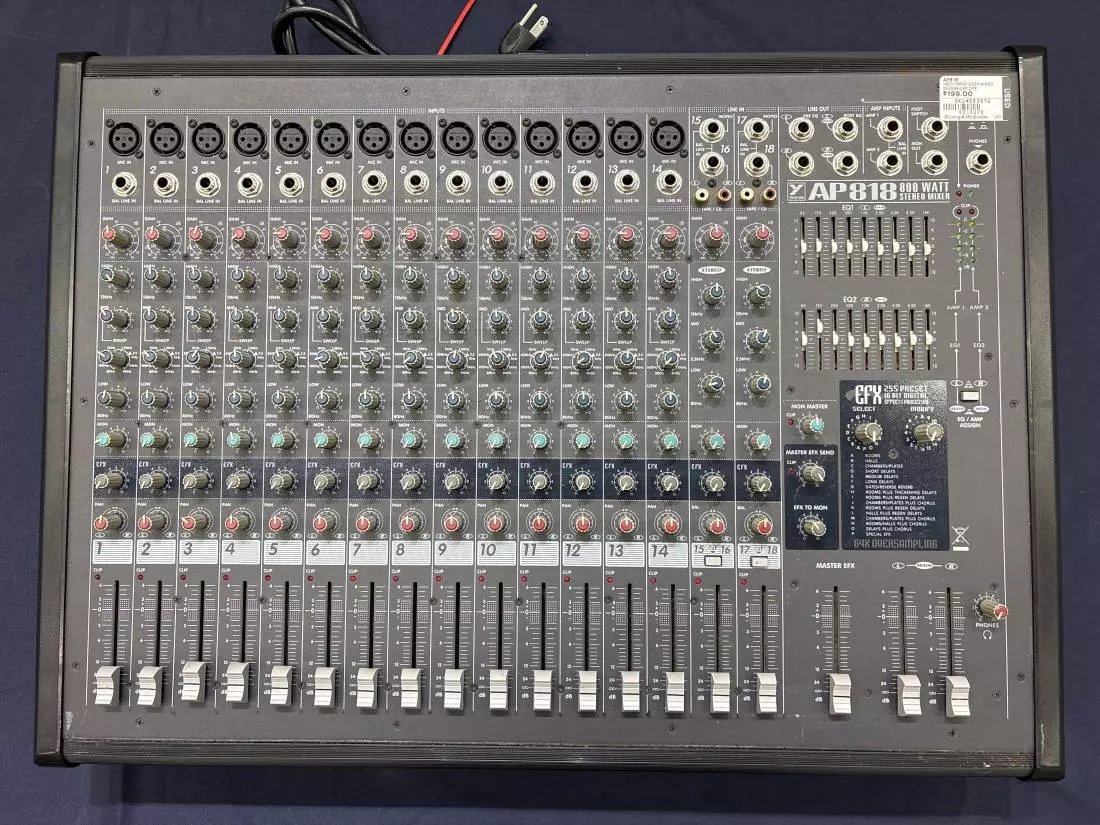

Yorkville Sound - AP818
Sale Price: $1550
Buy From Store
Pick up at the store only. Contact North Bay Ontario
This product may not come in original packaging.
Description
The Canadian-made AP818 is ideal for all PA applications including live music, live theater and DJ usage. Offering maximum clarity, low noise, versatility and professional features, the AP818 then adds durable reliability to its impressive list of attributes.
*************
With 800 Watts (400 Watts/ch @ 4 Ohms), the AP818 stereo powered console mixer delivers the power and features required for demanding, professional performance applications.
Uniquely engineered, internal SilentFan cooling provides quieter performance. Channels 1 to 14 are mono with XLR and 1/4" phone jack inputs, while channels 15/16 and 17/18 are configured in stereo with cueing switches and RCA inputs.
An optional BAG-7 gig bag is also available.
Specifications:
Number of Channels - 18
Mono Channel EQ(ch.1 to 14) - Low, Mid, Mid Sweep & High
Stereo Channel EQ (ch. 15/16 & 17/18) - Low, Mid, High
Channel Effects - All Channels
Monitors Effects - Yes
Balance Controls - Channels 15/16 & 17/18
Pan Controls - Channels 1 to 14
XLR (bal) Inputs - Ch. 1 - 8
1/4" Inputs - Ch. 1 - 12
RCA (unbal) Inputs - 2 Stereo Sets
Clip /Mute LED - All Channels
Phantom Power -24 V + LED indicator
VU Meter - 2 x 5 LED
Headphones - Cue & Volume
Internal Effects - Digital 16 Bit; 255 Effects
Effects Send - 1 Internal/External
Reverb / Effects Footswitch Jack - Master on/off
Mic Input Max Gain to Line Out(dB) - +63
Line Input Max Gain to Line Out (dB) - +45
Master EQ - Graphic Mono 9 Band 63 Hz - 16,000 Hz
Master EQ - Graphic Mono 9 Band 63 Hz - 16,000 Hz
Main Line Outputs - 1/4 inch TRS, 2 pre & 2 post EQ
A & B Amp Isolating Line Inputs - 2 x 1/4 inch TRS
Monitor Line Output - 1/4 inch TRS
Amp A & B Speaker Outputs - 1/4" Jacks x 2/amp
Mixer Signal to Noise Ratio (dB) - greater than 100
Mixer Frequency Response (All EQ Flat,+/-2dB)- 20-20kHz
Input Referred Noise to line out @ 150 Ohms (dBv) - 117
Mixer THD (Main out w/ -10dB input) - less than 0.03%
Amp A & B Power Output @ 8 Ohms (0%1"THD, 1kHz) - 240
Amp A & B Power Output @ 4 Ohms - 455
THD @ 1kHz (dB) - less than 0.03%
THD @ 20Hz-20kHz (dB) -less than 0.1%
Hum and Noise (un/Aweight -dB) - -98
Typical crosstalk @ 1 kHz (dB) - -66
Input Impedance - Bal/Unbal (Ohms) - 22,000/12,000
Input Sesitivity (Vrms Sine) - 1.47 V
CMRR @ 60Hz (min/typ) - 54 dB / 66 dB
Max Votage Gain (dB) - 29
Power Consumption (typ/max) - 660 VA/1200 VA
Protection - Thermal, Load & DC
Cooling- Variable Speed DC Fan
Transformer Type - Toroidal
Finish- Scratch Resistant Vinyl Coating
Chassis Construction - Steel
Rackmountable -Yes using optional RK812 Kit
Amp Mode Switch - stereo mains/mono main & monitor.
Dimensions (DWH, inches) - 25.3 x 18 x 5.5
Dimensions (DWH, cm) - 64.3 x 45.7 x 14
Weight (lbs/kg)- 43/19.5
