Gear Hunter

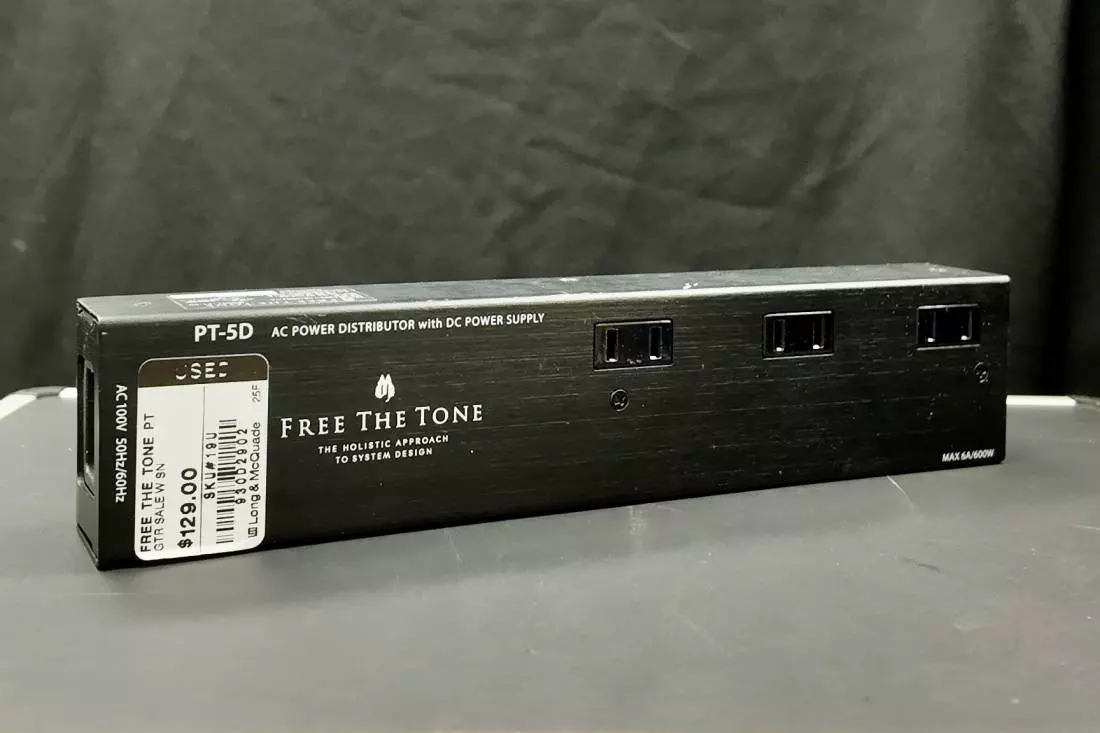

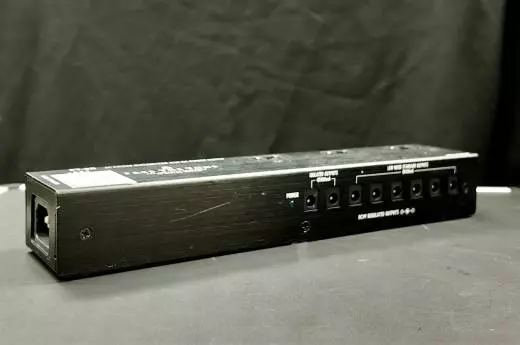

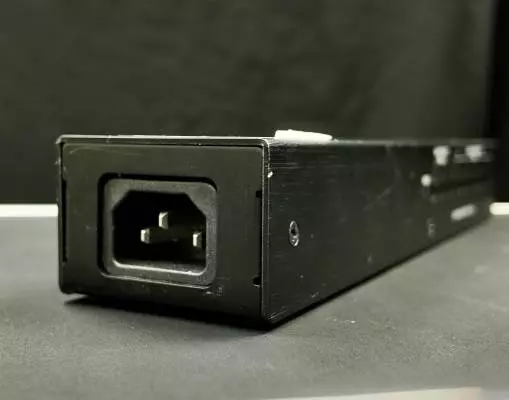

FREE THE TONE - PT5D POWER ISO
Sale Price: $99999999
Buy From Store
Pick up at the store only. Contact Scarborough Ontario
This product may not come in original packaging.
Description
***USED VERY GOOD CONDITION***
-COMES WITH POWER ADAPTER
FREE THE TONE
PT5D POWER ISO
Although it is light and compact, the PT-3D furnishes two completely independent isolated output terminals (9 VDC/500 mA) and six low-noise standard output terminals (9 VDC/100 mA) and can power up to eight lines.
The PT-3D’s isolated output terminals can supply current higher than 1 A momentarily required by some digital effects units on boot. After booting of the units, the PT-3D can stably continue to supply required amperage up to 500 mA.
This makes the PT-3D, which is designed to supply 9 VDC, applicable to effects units requiring high capacity current (such as DigiTech® WHAMMY DT™/WHAMMY 5™, Eventide® TIME FACTOR/MOD FACTOR/PITCH FACTOR /SPACE/H9, LINE6® DL4™/MM4™/FM4™, Strymon® TIMELINE/MOBIUS).
FEATURES
Like other PT series products, rigidity and lightness are attained by making the housing of Japanese-made aluminum alloy used in aircraft parts.

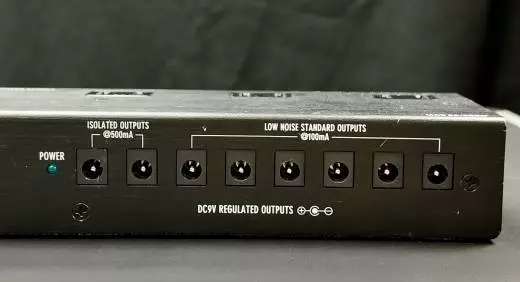

Two completely independent isolated output terminals (9 VDC/500 mA) and six low-noise standard output terminals (9 VDC/100 mA) can power up to eight lines.
Each 9VDC output terminal is stabilized and powers the effects unit via the separate noise filter and short-circuit protection circuit.
The noise level of the power from the low-noise standard output terminal is greatly reduced by passing through the 2-step noise filter and the output voltage is set to approximately 9.8 VDC in order to reproduce the condition of power being supplied from a brand-new battery.
The isolated output terminals can supply current higher than 1A momentary required by some digital effects units on boot.
Since the two isolated output terminals are completely independent each other and electrically insulated, no ground loop noise will occur. External digital noise via mains power supply lines is rejected.
SPECIFICATIONS
2× Stabilized 9 VDC isolated output terminals (@ max. 500 mA)
6× Stabilized 9 VDC low-noise standard output terminals (@ max. 100 mA)
Short-circuit protection circuit in each output
Dimensions: 120W × 55D × 35H mm (excl. rubber feet)
Weight: approx. 185 g (excl. accessories)
