Truetone - TT-CS6
Sale Price: $199
Buy From Store
Customer responsible for any shipping charges.
This product may not come in original packaging.
Description
The world's first low profile power brick with switching power supply technology.

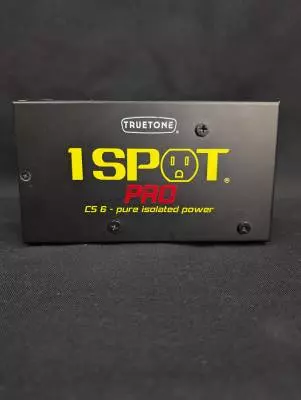

Introducing the Low-Profile CS6
Following on the tremendous success of the 1 SPOT Pro CS7 and CS12, Truetone presents the most powerful slim line power supply in its class, the 1 SPOT Pro CS6. Utilizing the energy efficient technology found in all 1 SPOTs, the CS6 is the first low-profile power brick to be able to put out up to 1600mA of pure, silent power.
Just like its bigger brothers in the 1 SPOT Pro line, the CS6 has a variety of DC voltages available to power just about any pedal on the market. Each output is completely isolated, regulated and filtered, eliminating crosstalk and noise. With no big transformer to hinder their performance, proximity noise is not an issue with any 1 SPOT Pro.
The low-profile design of the 1 SPOT Pro CS6 allows it to be mounted under flat pedalboards like the Pedaltrain Nano and Metro series. However, the compact design is also perfect for mounting on top of pedalboards, serving the dual role of a power supply and pedal riser.
Details
* Input Voltage

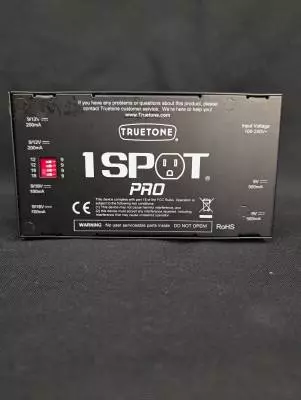

The 1 SPOT Pro CS6 can be used anywhere in the world without the use of a step-up or step-down transformer. Like the 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the bottom of the unit.
* Available Output Voltages
Outputs 1-2: 9VDC (500mA)
Outputs 3-4: 9VDC or 18VDC (100mA)
Outputs 5-6: 9VDC or 12VDC (200mA)

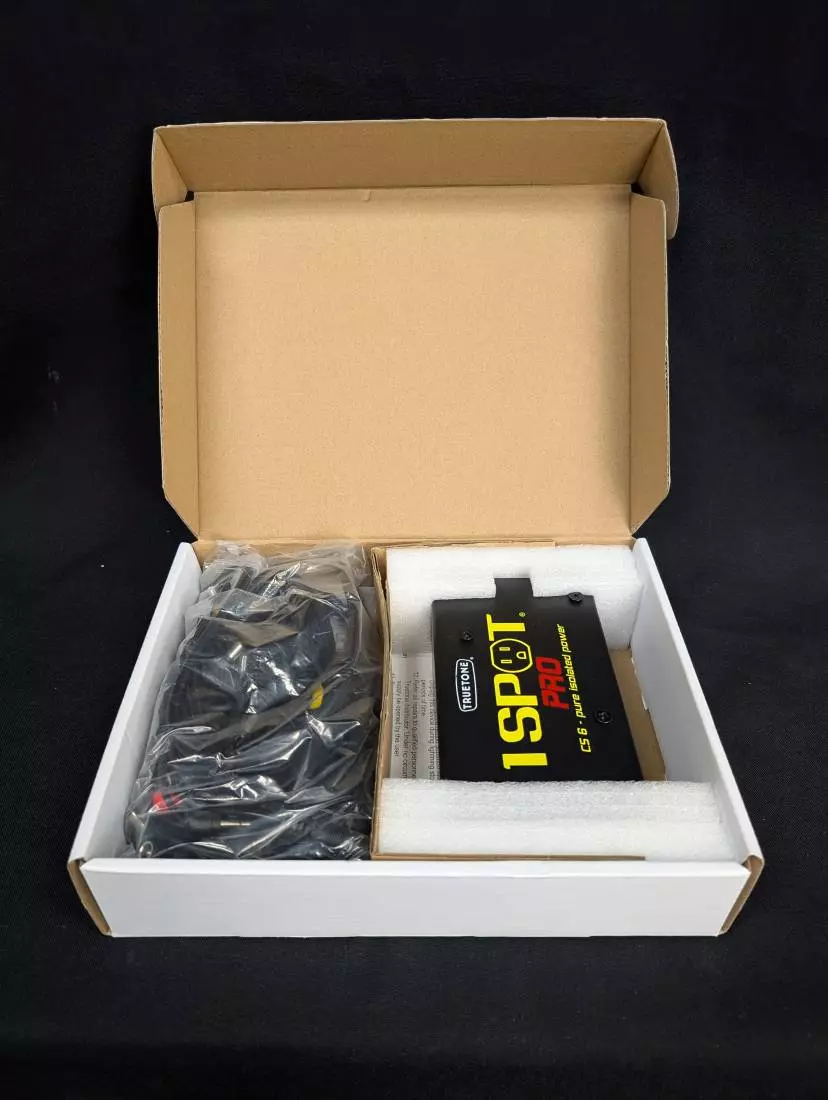

The 1 SPOT Pro CS6 includes a generous assortment of cables and converter plugs. The cables are of various lengths, color-coded for easy cable management and with right angle plugs on the pedal end.
Power cables included(all are center pin negative polarity):
1) DC26 (5.5x2.1mm barrel plugs; 26 (660mm) Purple
(1) DC22 (5.5x2.1mm barrel plugs; 22 (559mm) Blue
(1) DC18 (5.5x2.1mm barrel plugs; 18 (457mm) White
(3) DC12 (5.5x2.1mm barrel plugs; 12 (305mm) Yellow
(1) MC2 Two 5.5x2.1mm barrel plugs with 5.5x2.1mm input socket.
Converter Plugs:
(1) CL6 (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity)
Green for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity)
Red reverse polarity converter
(1) C35 (5.5x2.1mm barrel input, 3.5mm male output; tip positive)
Black 3.5mm (1/8) plug converter
(1) CBAT (5.5x2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
