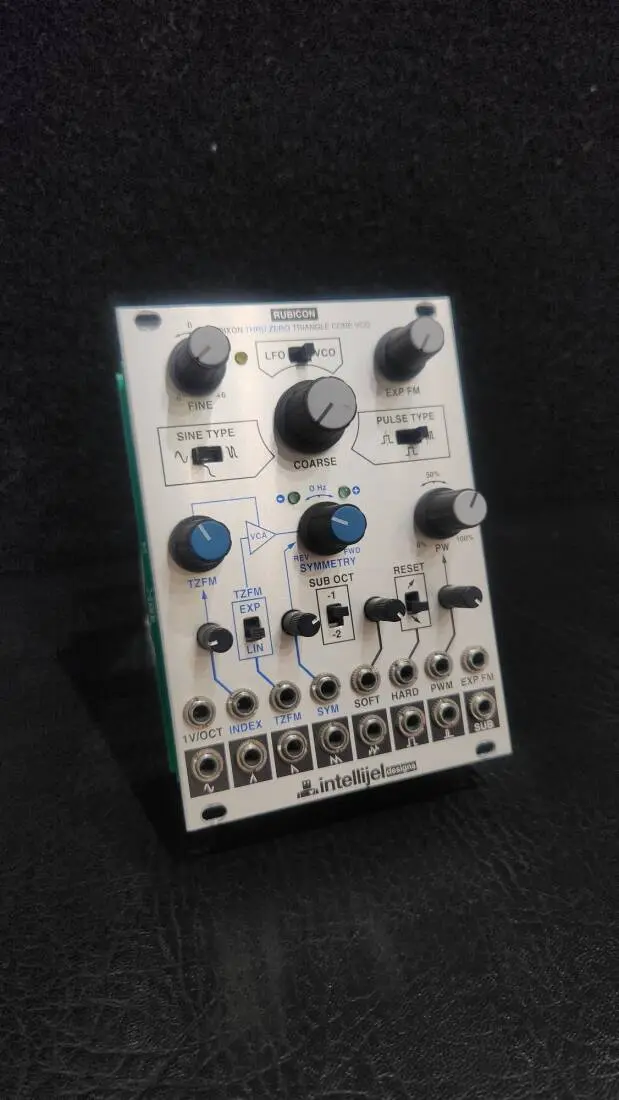

Intellijel - Rubicon - 3U
Sale Price: $530
Buy From Store
Customer responsible for any shipping charges.
Description
Width: 18hp
Power: 95mA @ -12V; 107mA @+12V
The Rubicon is packed with the following features:
* Triangle core
* Switchable linear and (for the first time in any module) exponential TZFM
* Linear index VCA for dynamic control of TZFM depth
* Symmetry control (full clockwise is normal, full counter-clockwise gives reversed waveforms, centered the VCO is at 0 Hz) with CV
* 12 primary waveform types: sine, sigmoid, double sigmoid, triangle, saw, double saw, zigzag, square, pulse (center modulated), pulse (edge modulated), double pulse
* Suboctave circuit (similar to the one found on the roland sh-101) with -1 and -2 octaves. (suboctave output is affected by fm just like the main signals.)
* Soft sync (aka reversing sync) with attenuator
* Hard sync with selectable reset direction (determines if the triangle starts moving up or down after a reset, very useful in LFO mode)
* Pulse-width modulation and exponential FM with dedicated attenuators.
* Wide frequency range:
hi range (VCO): 1 hz to 24 khz
lo range (LFO): 0.01 hz (100 seconds) to 240 hz
precise tracking within 0.1% over 8 octaves
