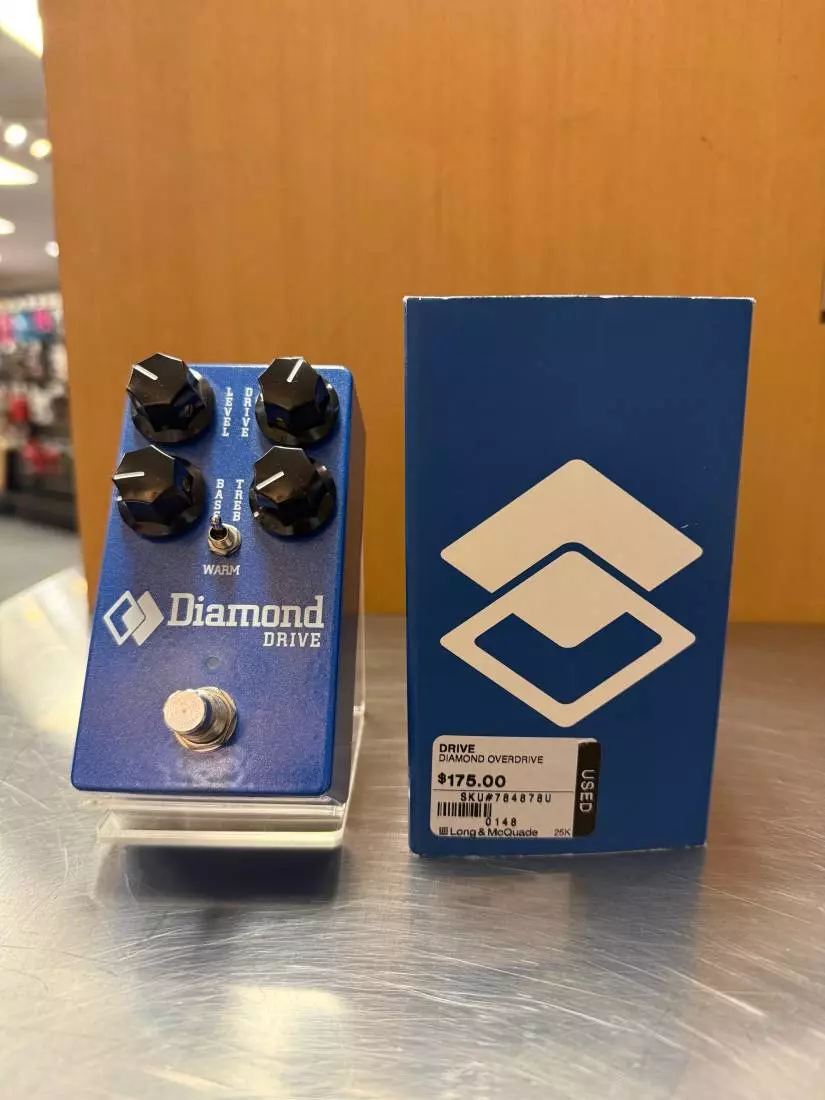

Diamond Guitar Pedals - DRIVE
Sale Price: $275
Buy From Store
Customer responsible for any shipping charges.
This product may not come in original packaging.
Description
Drenched in classic Diamond DNA, the new generation Diamond Drive is built on a foundation of signature drive and EQ soundblocks. Distilling the most desirable and functional elements of the original J-Drives, Blaze and Fireburst pedals, the Diamond Drive combines a warm and wide ranging overdrive built around a Premium Sound Burr-Brown Op-amp with a dual band, poswt-gain active EQ.
Designed to nail the most demanding sessions, the Warm toggle will tame an overly bright amp or take off a little bit of the edge while the wide ranging Bass, Treble, and Drive controls will deliver anything from a touch of hair to amp sizzling overdrive, sculpted to perfection.
Housed in a compact enclosure with top jacks, 9-18 VDC operation and soft-touch relay based true bypass switching system, the Diamond Drive might finally be the last overdrive you'll need.
Diamond Drive Specifications
Input Impedance: > 1 MΩ
Output Impedance: < 10 KΩ
Switching: Relay True Bypass
Power Requirement: 9-18 VDC, negative tip, 2.1 mm barrel jack
Current Draw @ 9 VDC: 17 mA
Baxandall EQ Bass Frequency: 150 Hz +|- 6 dB
Baxandall EQ Treble Frequency: 3 KHz +|- 6 dB
Warm Shelf Filter Frequency: 1 KHz +|- 4.5 dB
Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58 ")
Weight: 280 g
Made In Canada
