Accessories Included: SKB 1RMQU32-DHW Road Case

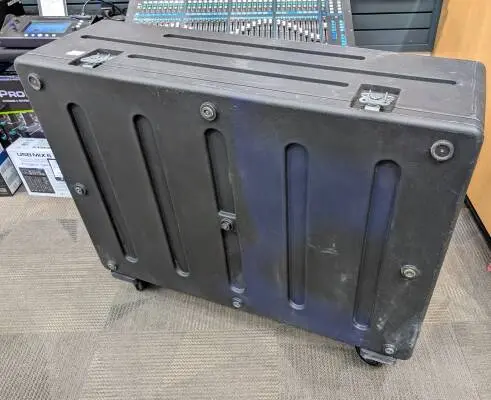

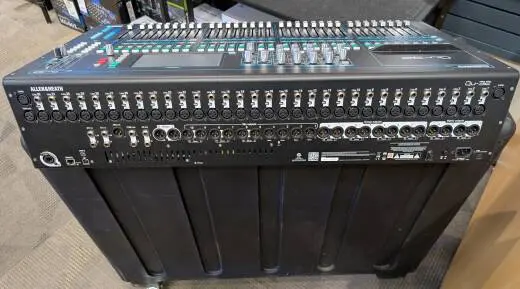

This QU-32 includes an SKB 1RMQU32-DHW Road case, a roto-molded case specifically for the QU-32 mixer. The SKB 1RMQU32 features a bottom sled (leave the mixer on the lower half when using, a dog house for cable management and large locking casters for easy transport.

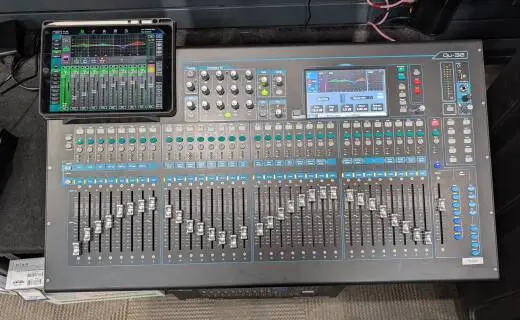

iPad shown is not included.

Capture Every Detail

Qu has been designed from the ground up to deliver professional sound quality, from input to output.
Qu-32 features thirty two AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage.
The AnalogiQ preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

The analogue signal is captured by high-class, low latency 24-bit analogue to digital converters, which are matched to 24-bit digital to analogue converters to deliver the required high quality output.

World Class Processing & FX

Qu’s RackFX dynamics and FX algorithms are derived from those used in our pro touring series.
Some of the world’s most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units.
Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ.

Record. Stream. Mix.

With its built-in audio interface, Qu-32 can record up to 32 tracks to your Mac or PC, and returns from the computer can be easily assigned to the Input channels of the mixer.
Standard MIDI control is sent over the USB and network connections, this can be mapped to the faders of your favourite DAW using our MIDI Control app which provides easy setup and emulation of HUI or Mackie Control protocols.

Want to livestream? Easy. Just send a stereo mix over USB and your streaming software will do the rest.

Qu-Drive

Record without a computer
Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive.
Capturing multitrack recordings of your shows has never been so easy. A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1.

On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.
AMM

Automatic Mic Mixer

AMM is vital in applications such as conferences, meetings and panel discussions where a number of microphones are open at the same time.
Reducing background noise and minimising the risk of feedback, the Automatic Microphone Mixer helps the engineer to manage the levels of multiple mic inputs, ensuring that each speaker’s contribution is heard clearly.

The D-Classic dynamic gain sharing algorithm is inspired by industry standard automixers. Up to 16 microphone sources can be mixed at once, with each channel having a priority setting which determines its ‘weight’ in the total system gain.

Remote Control Apps

The Qu-32 is designed to integrate seamlessly with the fully-featured Qu-Pad iPad app, providing super-fast, easy access to all settings, including channel processing, meters and RTA views, FX racks, scene management, USB audio control, setup menus and much more.

FEATURES:
• 32 Mic / Line Inputs (TRS + XLR)
• 33 Motor Faders (Chrome)
• 3 Stereo Inputs (TRS)
• 10 Mix Outputs (XLR)
• 8 Group Outputs (XLR)
• 4 Matrix Outputs (XLR)
• 4 Stereo Groups
• 2 Stereo Matrix Outs
• 4 DCA Groups
• 4 Mute Groups
• 4 FX Engines
• 4 FX Sends / Returns
• 10 Soft Keys
• 32x32 USB Audio Interface
• DAW MIDI Control
• AES Digital Out
• Recallable AnaLOGIQTM Preamps
• Qu-Drive direct Multitrack Recording / Playback on USB drives
• 7 Touchscreen
• iLive FX Library
• dSNAKETM Remote Audio Port
• Compatible with ME Personal Mixing System
• Qu-Pad iPad App
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication
