Universal Audio 6176 Channel Strip Review
At Long & McQuade, we get many recording-gear questions, especially about channel strips. Which ones to get, what they sound like, and how they fit into different workflows. Whether you're making your first purchase or adding to a professional rig, we hear these questions frequently.
As with anything in life, audio recording is a journey of learning, experimentation, and continuous skill development. In this blog, we will review the UA 6176 Channel Strip's features and use case, and offer insights on who should purchase one.
What Is the Universal Audio 6176 Channel Strip?

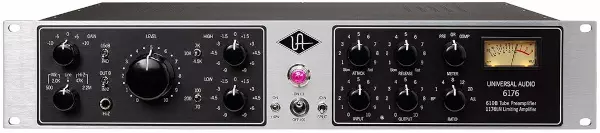

Universal Audio 6176 Front Panel

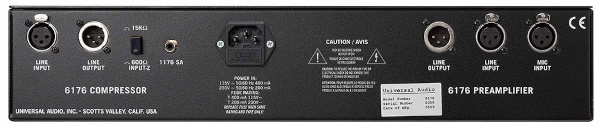

Universal Audio 6176 Rear Panel
The 610-B (as found in the LA-6176) was inspired by the microphone preamp section of the original 610 console designed by UA founder, M.T. "Bill" Putnam, in 1960. The 610 custom consoles, which included the 610-A preamp and EQ modules, were the first consoles of a modular design. Although technologically simple compared to modern consoles, those 610 consoles possessed a warmth and character that kept them in demand for decades.
On the left side of the 6176, you’ve got the 610-B tube mic pre with EQ tone-shaping options, selectable input impedance (500 & 2K), line input, and (47k & 2.2M) Hi-Z inputs. The Hi-Z input, in particular, is fantastic as a direct input for electric bass.
On the right side sits the legendary 1176LN compressor. The circuit is based on the D and E revisions—widely considered the best-sounding and quietest iterations. You get all the usual offerings: ratio, attack, release, input/output gain controls, and more.
A Hidden Feature That Doubles Your Options
But here’s where it gets interesting: flip the “Join” switch off, and the unit becomes two independent pieces—a standalone tube mic pre and a standalone compressor.
Even better, if you turn the Attack knob all the way counterclockwise until it clicks, the right-hand side becomes a FET dynamic mic preamp. (No 48V phantom power on this side, but that’s easily solved with an external phantom box like the Radial StageBug SB-48.)

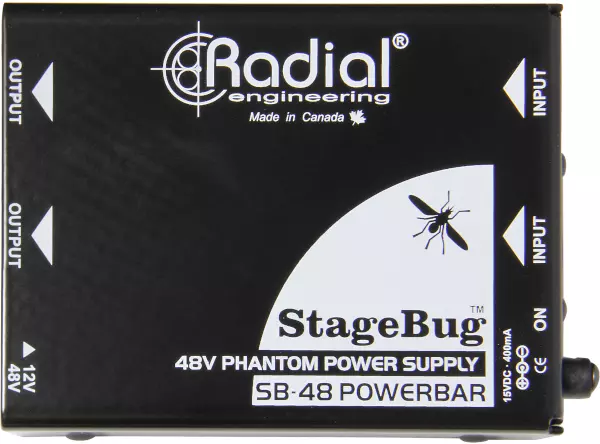

Radial StageBug SB-48
One major reason the 6176 is so good is that you actually have four tools in one:
- A full channel strip
- A tube mic preamp
- An 1176 compressor
- A FET mic preamp
The UA 6176 Is a Fan Favourite
One of the best things about the UA 6176 is how easy it is to find real-world examples of its use.
Here are a few legendary engineers, producers, and artists who’ve used the 6176, the 610 mic pre, and the 1176LN: Vance Powell, Joe Chiccarelli, Rik Simpson, Chris Martin (Coldplay), Norah Jones, Wyclef Jean, James Mercer (The Shins), Adele, Pharrell, Frank Sinatra, and Nat King Cole.
A prominent component of Putnam’s United/Western Studios in Los Angeles, the 610 was used on many classic recordings by Frank Sinatra and Sarah Vaughan, as well as records like the Beach Boys' Pet Sounds and the Doors' LA Woman.
The extensive live recordings made with Wally Heider's 610 ‘Green Board’ include records by Duke Ellington, Elvis Presley, Johnny Cash (At Folsom Prison), Cream, The Who, The Grateful Dead, The Byrds, Jefferson Airplane, Booker T. & the M.G.s, Otis Redding, Eric Burdon and The Animals, Simon and Garfunkel, and The Jimi Hendrix Experience. The desk was then bought by Neil Young and has been used on his records ever since.

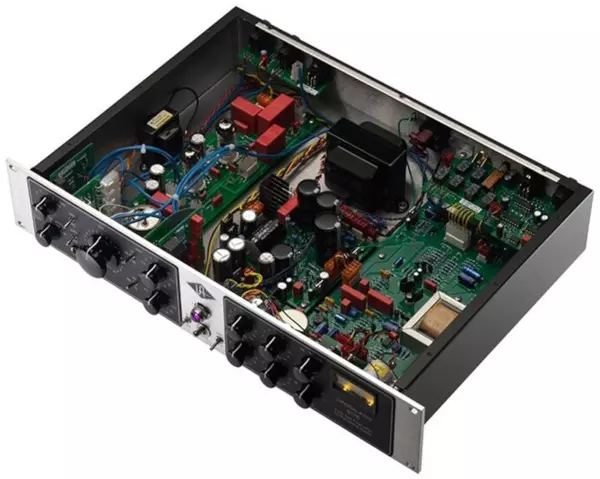

Inside components of the UA 6176
Reviews of specific recordings and use cases:
- Chris Martin - https://equipboard.com/submissions/275370
- Adele - https://equipboard.com/submissions/275660
- Steve Lukather - https://equipboard.com/submissions/277087
- Alan Parsons - https://equipboard.com/submissions/189143
Use Cases
If you're recording modern genres such as indie, R&B, rap, rock, or country, you're likely looking for colouration and saturation. Today's audio interfaces are extremely clean. The 6176 adds rich harmonics and warmth, giving recordings depth.
Prefer something ultra-transparent? You might be considering Millennia STT-1 or Grace Designs gear for orchestral or classical work.
If you're looking for a gritty sound, use the 6176 as a distortion box. Disable the “Join” switch, turn the Attack knob counterclockwise until it clicks to disable the compressor, then crank the gain until you hit your saturation sweet spot.
If you're looking for a sound that's clean and warm, use it conservatively, and it’ll deliver beautifully transparent results—ideal for large-diaphragm dynamics and more.
UA 7176 Myths
Some say that once vocals are layered, doubled, and processed, the original sound of the channel strip gets lost in the mix. If that were true, why bother with any channel strip at all? Wouldn't a single universal strip suffice for all tracks?
It's like saying all cars are the same because they all get you from A to B. Every channel strip brings a unique tone and character, which directly affects the sound, vibe, and emotion of a performance. Channel strips make a significant difference, and the 6176 is one of the most versatile and sonically pleasing options available.
UA 6176 Is The Best All-Rounder
The Universal Audio 6176 is arguably one of the most accessible high-end strips on the market, especially at Long & McQuade. You can often find a used or demo unit at your local shop, and you can rent one at almost any time for a session or trial.
If I had to pick just one all-rounder to capture vocals, DI bass, acoustic guitars, or piano, the 6176 would be at the top of the list. For the downtown condo producer, voice-over studio, or multi-genre engineer, the UA 6176 delivers.
Notable mentions go out to other great channel strips like the Manley Core or the RND Shelford Channel, but for me, the 6176 hits the sweet spot with its classic, flexible, and great tube sound.
As always: research, listen, and match the gear to your workflow and genre. If you enjoyed this UA 6176 review, and you're looking for one of the top channel strips in the industry, you can shop for the UA 6176 on our website or in-store.
